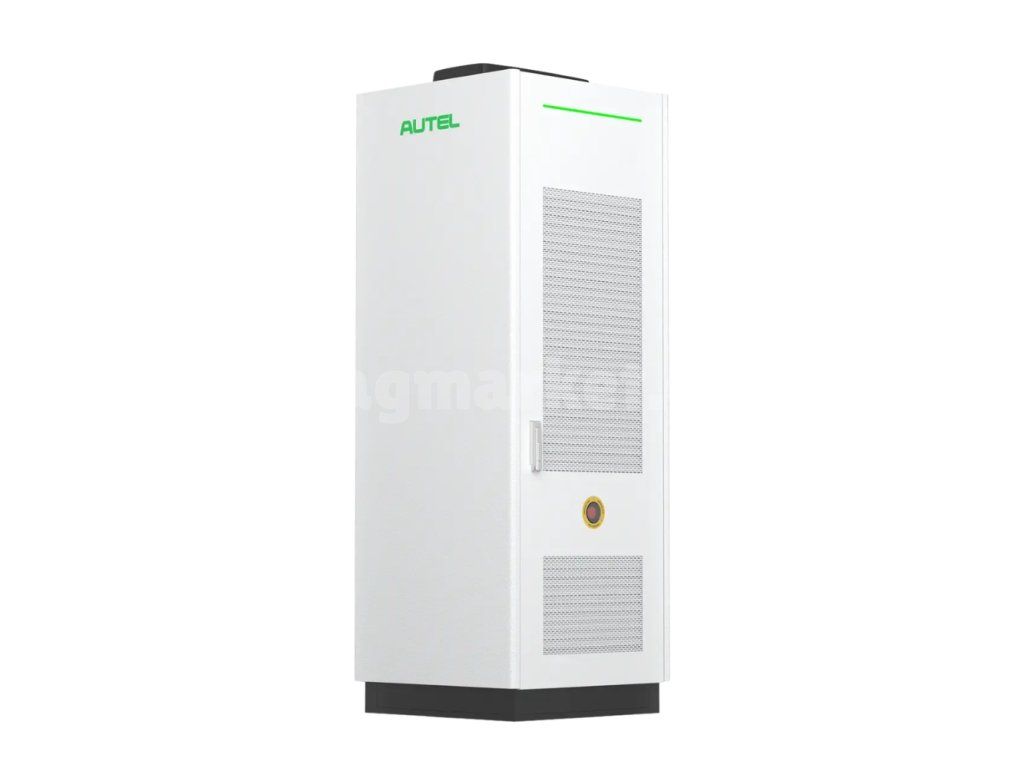

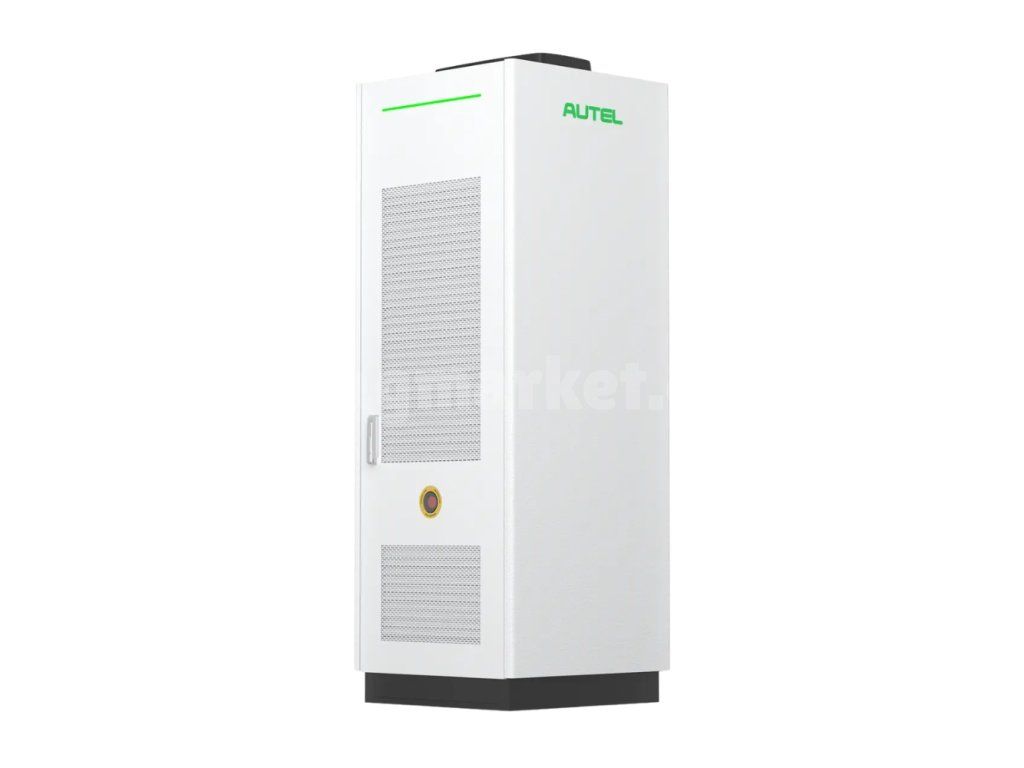

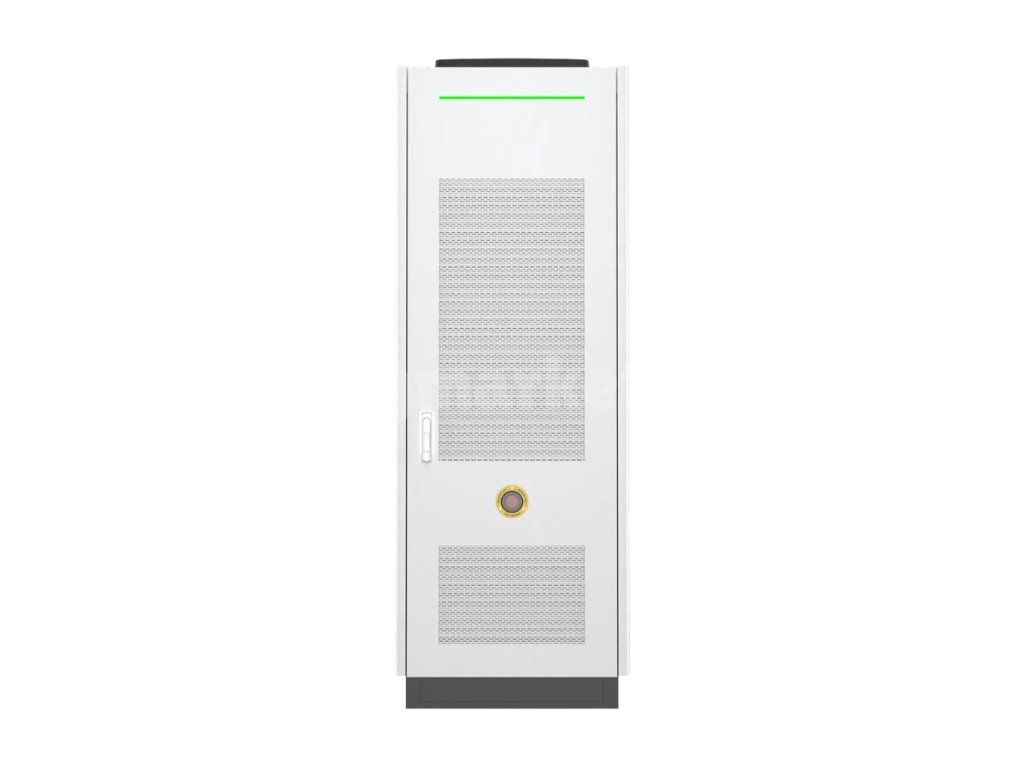

Autel MaxiCharger DS480 (fully equipped – 480 kW)

Product detailed description

Autel MaxiCharger DS480 is a high-performance, modular DC charging system designed for public fast-charging hubs, corporate fleets, and logistics centers. It allows flexible configuration of output power to 320 kW, 400 kW or up to 480 kW. The minimum adjustable power starts at 40 kW. It operates within a wide output voltage range of 150–1000 V, ensuring compatibility with both modern and future electric vehicles.& nbsp;With support for up to eight simultaneous DC outputs from a single power cabinet , it allows for the connection of 1 to 8 charging points. Its design allows for a combination of liquid-cooled and air-cooled charging stations and supports both single CCS connectors and dual ones. The charging system also offers extensive connectivity options -  Ethernet, 4G/5G, Wi-Fi and remote OTA updates.

Features

• Adjustable power 320 / 400 / 480 kW
• Voltage range 150–1000 V
• Up to 8 DC outputs
• 3P + PE Grounding System
• Efficiency up to 96%
• Outputs 2× DC in combination MCS + CCS2
• IP54 / IK10 Protection Rating
• ADA compliance
• EMC Class A

Updates

Software updates are performed via OTA (Over-The-Air) updates, which are downloaded through a web portal or FTP.

Certifications

The device complies with the requirements of IEC 61851-1, IEC 61851-21-2, IEC 61000, and Eichrecht and is certified according to the CE, UKCA, TR25, ETSI EN 303645, and TÜV standards.

Why Choose the Autel MaxiCharger DS480

• It offers ultra-fast charging power up to 480 kW

• Powering multiple charging points from a single power cabinet
• Efficiency up to 96% reduces energy losses and optimizes operating costs
• Ensures reliable operation even in demanding conditions thanks to its robust design and advanced cooling

Supported languages

Device Specifications

• Protection rating: IP54
• Display: 8″ LCD display
• Operating altitude: 2,000 m
• Operating temperature: -30 – 55 °C
• Storage temperature: -40 – 70 °C
• Dimensions: 782 x 782 x 2150 mm

Package Content

• Autel MaxiCharger DS480 (including 480 kW modules)
