Autel MaxiCOM MK906 Pro-TS

Code: 2591
Brand: Autel
€1 599 €1 321,49 excl. VAT
On request, in stock within 3 days
Delivery to:
19.11.2024
Delivery offer

The Autel MK906 Pro-TS is an advanced variation of model MK906 Pro. The too add support for TPMS valves coding.

Detailed information

Product detailed description

The Autel MK906 Pro-TS offers complete diagnostics of all units on most European, Asian and American cars, combined with advanced service features nad TPMS coding. Unlike cheap universal devices, it is not limited to diagnostics within the OBD-II standard. Supports older vehicles (OBD-I). It can read the readiness code, reset service intervals, diagnose and regenerate DPF, perform basic throttle settings, reset automatic transmission adaptations, perform complete TPMS diagnostics, register battery, code the injectors, code keys and remotes and many other tasks. In addition to the engine unit, the automatic transmission, ABS, airbags, dashboard and other units in the car are also supported. Adapter kit for older vehicles is included. Wireless VCI make the diagnostic work comfortable together with Full HD display (1920x1200) and HDMI output to connect with external display or TV. The tool can perform TPMS sensor coding by approx. 99 % vehicles.

Autel MK906 Pro-TS also supports access to FCA Group units protected by the Security Gateway Module (SGW) without the need for a bypass - a subscription via AutoAuth is required. Support for CAN-FD and DoIP communication protocols.

Diagnostic Functions

  • Control unit identification
  • Reading fault codes of all units
  • Clear fault codes of all units
  • Display live data
  • Active tests
  • Adaptation
  • Coding
  • Online coding

Service Functions

  • Service intervals reset
  • ABS bleeding
  • Injector coding
  • Steering wheel angle sensor reset
  • Reset of automatic transmission adaptations
  • Battery registration
  • TPMS reset
  • Electric parking brake handling
  • Throttle basic settings
  • Air suspension calibration
  • Coolant bleeding
  • Doors and windows adjustments
  • Adaptive lights calibration
  • adBlue reset
  • NOx sensor reset
  • Start/Stop reset
  • GPF replace and regeneration
  • DPF replace and regeneration and much more...

OBD-II Functions

  • reading engine fault codes - P0, P2, P3, U0 and manufacturer specific codes P1, P3, U1 - permanent and temporary faults
  • clearing engine fault codes
  • extinguishing emission warning light (MIL)
  • live engine data
  • freeze frame engine data
  • I/M Readiness test
  • lambda sensor test
  • EVAP system test
  • battery test
  • display vehicle information (VIN, CVN and more)
  • OBD-II fault code database
  • support for most OBD-II test modes including CAN, ISO9141, KWP2000, J1850 VPW, J1850 PWM protocols

TPMS Functions

Diagnostics is able to activate/read 99% of known TPMS sensors, read and clear TPMS errors, display manufacturer specific valve coding procedures, can also handle sensor learning even when replacing original sensors with Autel MX replacements.

  • check - activate TPMS sensors to display ID, tire pressure, tire temperature, battery status and sensor location.
  • diagnostics - displays system status, reads and clears any errors
  • coding - when replacing original sensors with Autel MX sensors, can code these:
  • copy by activation - will program the sensor ID obtained from the sensor
  • copy via OBD-II - will program the sensor ID obtained from the TPMS unit
  • copy by input - will allow manual input of the original sensor ID
  • auto create - will create a random ID to program the sensor
  • TPMS learning - this function is designed to program the newly created sensor ID into the TPMS unit - 3 ways of implementation
  • if the original part number is known , this function allows Autel MX sensors to be activated and programmed. This method allows up to 20 sensors to be coded at once.

Updates

1-year free update is included in the price of the device. After this time you can still use the device, updates are not mandatory, but you will not have information and support for newer car models. For a price list of updates, click here.

Additional Equipment (not included)

Quick Overview of Autel Models

  • diagnostic and service functions: MK808S, MK808K-BT, MK808S-TS
  • diagnostic and service functions and coding: MP808S, MP808S-TS, MP900, MP900BT, MP900TS
  • advanced models: MK906BT, MK906 Pro, MK906 Pro-TS, MK908P, MS Elite II
  • TOP models: Ultra Lite, Ultra
  • IMMO series: IM508, IM608

Why choose Autel MK906 Pro-TS?

  • offers all common diagnostic and service functions together with advanced TPMS functions
  • support for cars up to 2024
  • high-res 8-inch display (1920x1200 pixels)
  • support for CAN-FD and DoIP communication protocols
  • coding and online coding supported
  • wireless VCI
  • HDMI connector

Supported Vehicles (1996 - 2024)

Asian

Acura, Daewoo, Holden, Honda, Hyundai, Infiniti, Isuzu, Kia, Lexus, Mazda, Mitsubishi, Nissan, Scion, Subaru, Suzuki, Toyota.

European

Abarth, Alfa-Romeo, Audi, BMW, Citroen, Dacia, Fiat, Ford, Jaguar, Lancia, Land Rover, Maserati, Maybach, Mercedes, Mini, Opel, Peugeot, Porsche, Renault, Saab, Seat, Skoda,, Smart, Sprinter, Vauxhall, Volvo, Volkswagen.

American

Ford, GM, Chrysler.


Supported languages

The device supports different languages. After receiving the device, send us the serial number and we will authorize the device for you in desired language. The translation may not be completely 100%. The scope of the translation is being extended and in our experience the translation is well usable and will make your work easier.

List of the supported languages: English, Arabic, Czech, Dutch, French, German, Hebrew, Indonesian English, Italian, Japanese, Korean, Persian, Polish, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Portuguese, Turkish, Thai, Vietnamese

Hardware Specification

  • operating system: Android 10.0
  • memory: 4GB / 128 GB
  • display: 8" touch screen with 1920x1200 pixel resolution
  • HDMI connector
  • operating temperature: 0 - 50°C
  • storage temperature: -20 - 70°C
  • operating humidity: 5 - 95% (non-condensing)
  • dimensions: 237 x 149 x 36 mm

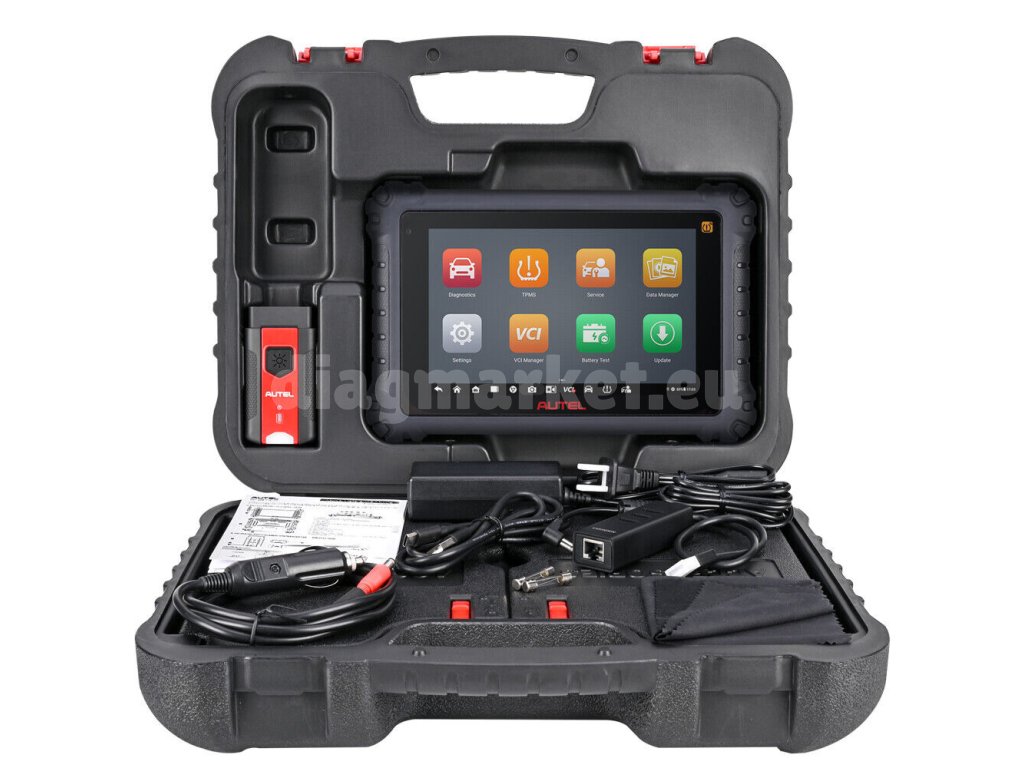

Package Content

  • Autel MaxiPRO MK906 Pro-TS
  • wireless VCI (vehicle communication interface)
  • USB cable
  • practical carrying case
  • quick start guide
  • detailed manual
