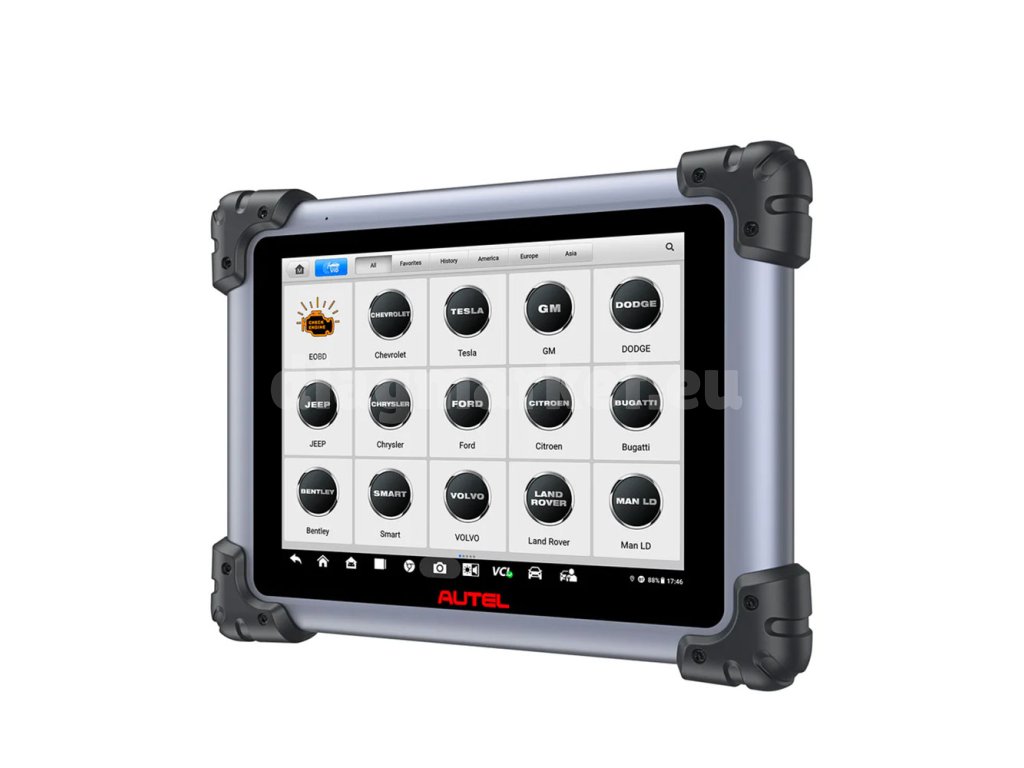

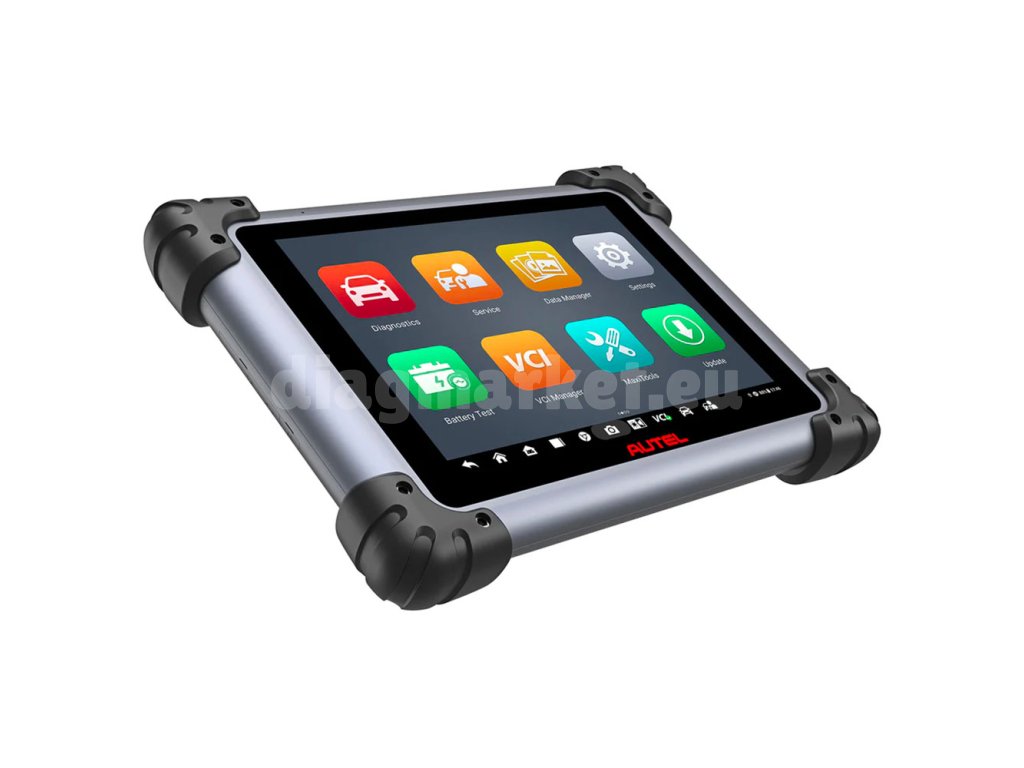

Autel MaxiSYS Elite II Pro

Code: 1021
Brand: Autel
€2 449 €2 023,97 excl. VAT
In stock
Delivery to:
10.12.2024
Delivery offer

Autel MaxiSYS Elite II Pro handles complete diagnostics of all units including active tests, coding, online coding, module flashing.

Detailed information

Product detailed description

MaxiSYS Elite II Pro offers similar diagnostic functions like Autel's flagship tool MaxiSYS Ultra. It handles complete diagnostics of all units on most European, Asian and American cars, combined with advanced service features. The device can read and clear fault codes on all units, display live data, and perform the active tests as well as it can read readiness code, reset service intervals, diagnose and regenerate DPF, perform basic throttle settings, reset automatic transmission adaptations, do the basic TPMS diagnostics, register and code the battery, perform injector coding, key and remote coding and many other tasks. Flashing of units, coding and adaptation as well as online coding and adaptation is also supported. Unlocking of hidden vehicle's functions and unit topology (mapping) is also included.

Autel MaxiSYS Elite II Pro brings a wide support of almost all makes and units. Vehicle coverage is 99,99 % of the market. All important protocols including D-PDU, SAE J2534, RP1210, DoIP, CAN FD are supported. Autel MaxiSYS Elite II also supports access to FCA Group units protected by the Security Gateway Module (SGW) without the need for a bypass - a subscription via AutoAuth is required.

Diagnostic Functions

  • Control unit identification
  • Reading fault codes of all units
  • Clear fault codes of all units
  • Display live data
  • Active tests
  • Adaptation
  • Coding
  • Online coding

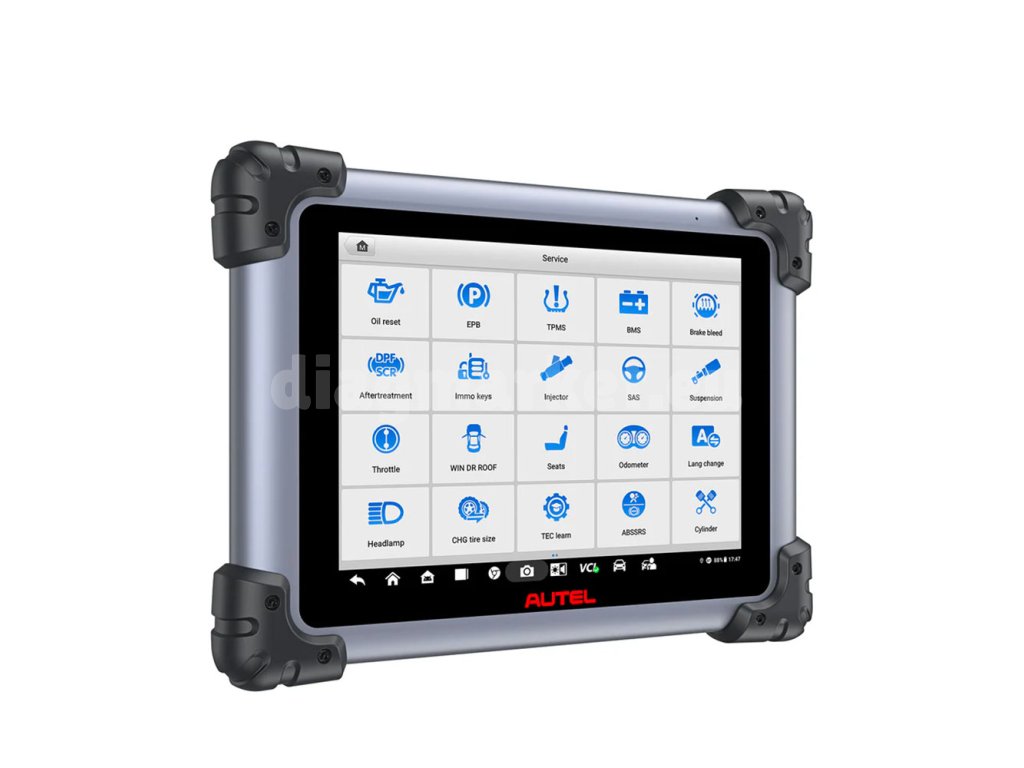

Service Functions

  • Service intervals reset
  • ABS bleeding
  • Injector coding
  • Steering wheel angle sensor reset
  • Reset of automatic transmission adaptations
  • Battery registration
  • TPMS reset
  • Electric parking brake handling
  • Throttle basic settings
  • Air suspension calibration
  • Coolant bleeding
  • Doors and windows adjustments
  • Adaptive lights calibration
  • adBlue reset
  • NOx sensor reset
  • Start/Stop reset
  • GPF replace and regeneration
  • DPF replace and regeneration and much more...

OBD-II Functions

  • reading engine fault codes - P0, P2, P3, U0 and manufacturer specific codes P1, P3, U1 - permanent and temporary faults
  • clearing engine fault codes
  • extinguishing emission warning light (MIL)
  • live engine data
  • freeze frame engine data
  • I/M Readiness test
  • lambda sensor test
  • EVAP system test
  • battery test
  • display vehicle information (VIN, CVN and more)
  • OBD-II fault code database
  • support for most OBD-II test modes including CAN, ISO9141, KWP2000, J1850 VPW, J1850 PWM protocols

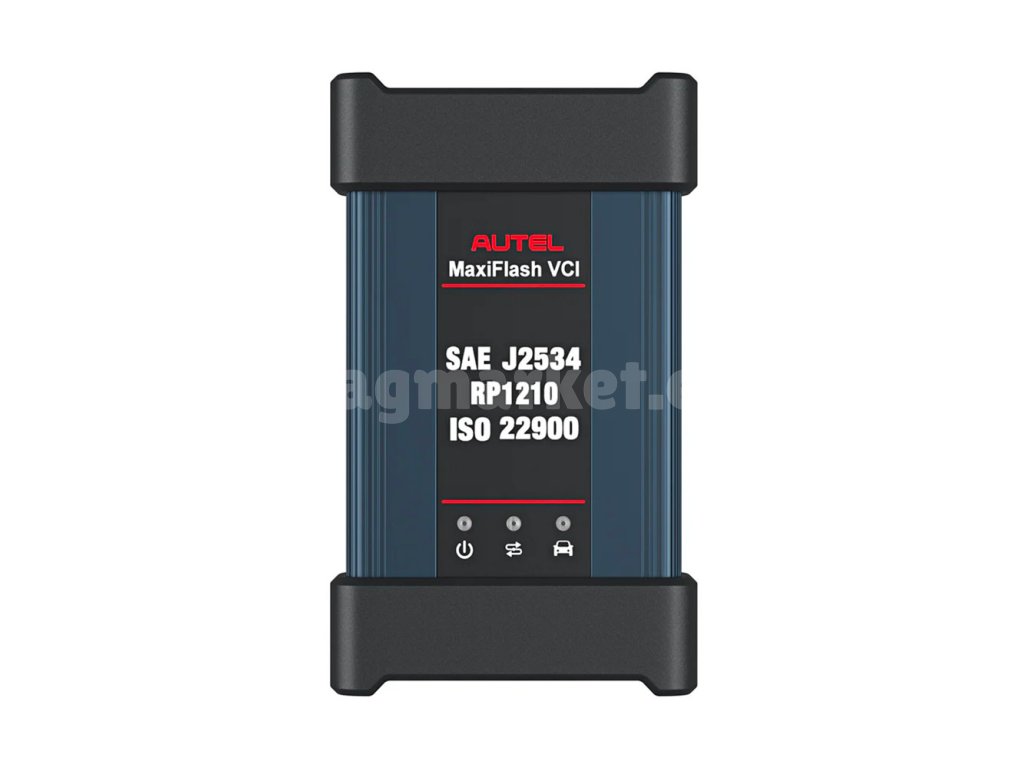

Autel MaxiFlash VCI

The VCI works not only as an adapter for diagnostic tool, it also offers functions of a 4-channel oscilloscope, waveform generator, multimeter, and CAN BUS tester.

  • More Advanced than J2534: With the 3 diagnostic protocols (D-PDU/SAE J2534/RP1210), the device can work with more OEM diagnostic tools and diagnose & program more vehicles than J2534 programming tools.
  • VCI Communication: Dual Wi-Fi mode, one is for tablet connecting to VCI, the other one allows tablet connecting to Internet for software update and browser. Faster transmission speed, more stable, and better anti-interference ability (equivalent to USB communication), communication range reaches 50m, and diagnosis speed increases by 30%.

Advanced Coding and Programming

With MaxiSYS Elite II it is possible to perform all the diagnostic procedures that until now only authorized service stations were able to perform like coding and programming.

  • Coding - also known as teach-in program, component program or simply the unit coding, is used to reprogram adaptive data for vehicle control modules after repairs or replacements of vehicle parts.
  • Programming - downloads the latest version of software from the online server database through Internet access (this procedure is done automatically when the tablet is connected to the Internet, so there is no need to check for software updates yourself), and reprograms the newest version into the vehicle's ECU.

MaxiSYS Elite II can help you solve all above issues. With D-PDU, SAE J2534 & RP1210 protocols, Auto scan tool MaxiSYS Elite II provides diagnosing, coding, and programming for more passenger and commercial vehicles, much more advanced than J2534 programming tools.

  • Online ECU programming & coding without any special connectors for BMW (F & G chassis);
  • Online ECU programming for new chassis of Benz (204, 212, 207, 463, etc.); Online SCN for Benz (222, 212, 204, 205, etc.);
  • Online ECU coding for Volkswagen, Audi, Porsche, Renault, etc.
  • ECU programming & coding for GM, Ford, Chrysler, Volvo, Land Rover, Jaguar, etc.
  • The VCI module also supports various common vehicle buses protocols, for instance: KPW, CAN, CAN-FD, DoIP, etc. Speaking of the CAN-FD, its transmission speed is 14 times faster than CAN.

Updates

1-year free update is included in the price of the device. After this time you can still use the device, updates are not mandatory, but you will not have information and support for newer car models. For a price list of updates, click here.

Additional Equipment (not included)

Quick Overview of Autel Models

  • diagnostic and service functions: MK808S, MK808K-BT, MK808S-TS
  • diagnostic and service functions and coding: MP808S, MP808S-TS, MP900, MP900BT, MP900TS
  • advanced models: MK906BT, MK906 Pro, MK908P, MS Elite II Pro
  • TOP models: Ultra Lite, Ultra
  • IMMO series: IM508, IM608

Why choose Autel MaxiSYS Elite II?

  • advanced diagnostics
  • 22+ supported languages
  • new MaxiFlash VCI with extended J2534 support
  • wide vehicle coverage

Supported Vehicles (1996 - 2024)

Asian

Acura, Daewoo, Holden, Honda, Hyundai, Infiniti, Isuzu, Kia, Lexus, Mazda, Mitsubishi, Nissan, Scion, Subaru, Suzuki, Toyota.

European

Abarth, Alfa-Romeo, Audi, BMW, Citroen, Dacia, Fiat, Ford, Jaguar, Lancia, Land Rover, Maserati, Maybach, Mercedes, Mini, Opel, Peugeot, Porsche, Renault, Saab, Seat, Skoda,, Smart, Sprinter, Vauxhall, Volvo, Volkswagen.

American

Ford, GM, Chrysler.


Supported languages

The device supports different languages. After receiving the device, send us the serial number and we will authorize the device for you in desired language. The translation may not be completely 100%. The scope of the translation is being extended and in our experience the translation is well usable and will make your work easier.

List of the supported languages: English, Arabic, Czech, Dutch, French, German, Hebrew, Indonesian English, Italian, Japanese, Korean, Persian, Polish, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Portuguese, Turkish, Thai, Vietnamese

Hardware Specification

  • operating system: Android 10.0
  • memory: 4GB / 128 GB
  • display: 9,7" touch screen with 2048x1536 pixel resolution
  • HDMI connector
  • operating temperature: 0 - 50°C
  • storage temperature: -20 - 70°C
  • operating humidity: 5 - 95% (non-condensing)
  • dimensions: 312 x 208 x 36 mm

Package Content

  • Autel MaxiSYS Elite II Pro
  • Autel MaxiFlash VCI diagnostic adapter
  • diagnostic cable
  • USB cable
  • practical carrying case
  • user manual
  • 230V charger
  • charger for connection to a 12V socket in the car
  • soft cloth
  • quick start guide and detailed user manual
