Autel MaxiSYS MS 909CV

Product detailed description

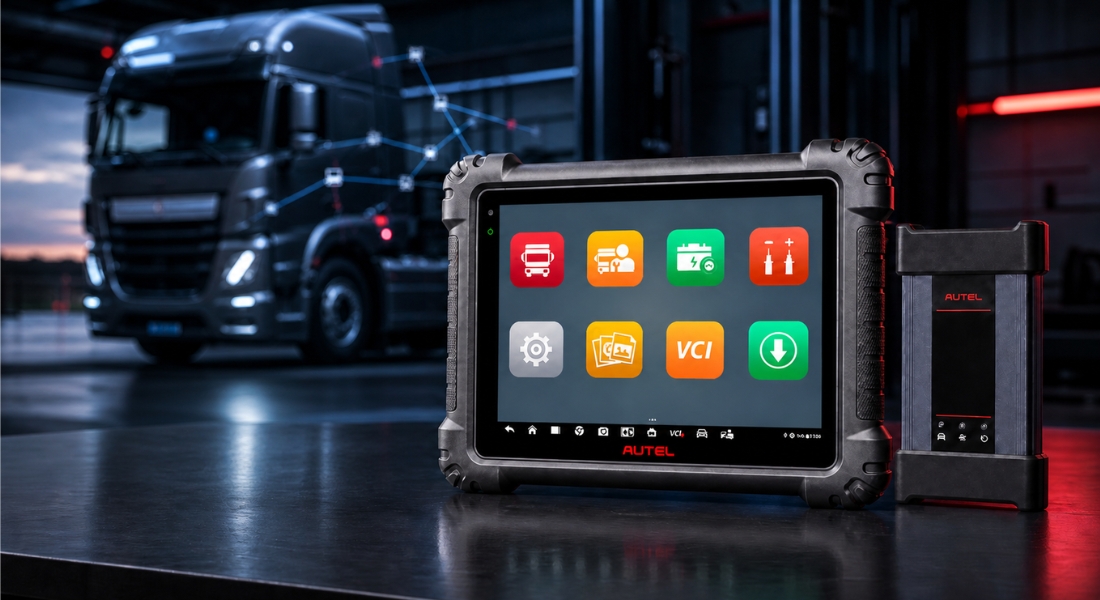

The Autel MaxiSYS MS909CV is a professional diagnostic tool designed for light-, medium-, and heavy-duty commercial vehicles, buses, trailers, specialty vehicles, and select construction and agricultural equipment. The device performs comprehensive diagnostics of all available control modules in combination with advanced service functions, adaptations, coding, and programming. The diagnostic tool can read and clear trouble codes from all control modules, display live data, and perform actuator tests. It also supports automatic vehicle testing, identification via AutoVIN and VINScan, control unit topology (mapping), diagnostic reports, and advanced functions for engines, transmissions, brake systems, and exhaust aftertreatment systems. The package includes the Autel MaxiFlash VCI wireless communication interface, the MaxiBAS B200 battery tester, a digital multimeter, 400A current clamps, and an extensive set of diagnostic and measurement adapters.

Diagnostic Functions

• ECU Identification
• Reading Error Codes from All ECUs
• Clearing error codes from all control units
• Freeze frame
• Live data display
• Graphical display and recording of live data
• Actuator tests
• Adaptation
• Coding
• ECU programming
• Topology
• Creating diagnostic reports
• Saving, printing, and sharing diagnostic results

Service Functions

• Reset Service Intervals
• ABS Bleeding
• Injector Coding
• Reset Steering Wheel Angle Sensor
• Reset Automatic Transmission Adaptations
• Battery Registration
• TPMS Reset
• Electric Parking Brake Operations
• Throttle Body Basic Settings
• Air Suspension Calibration
• Cooling System Bleeding
• Door and Window Adjustments
• Adaptive Lighting Calibration
• AdBlue Reset
• NOx Sensor Reset
• Start/Stop System Reset
• DPF Replacement and Regeneration
• SCR System Diagnostics and Service
• Exhaust Aftertreatment System Service
• Adaptation After Replacement of DPF, DOC, or Related Components
• EGR Test and Adaptation
• Cylinder Deactivation Test
• Engine Runtime Balance Test
• Calibration of VGT electronic turbocharger control
• PTO speed and function adjustment
• Transmission and clutch adaptation
• Calibration of ADAS driver assistance systems and more...

OBD-II diagnostics

• Reading engine fault codes – P0, P2, P3, U0, and manufacturer-specific codes P1, P3, U1 – permanent and temporary faults
• Clearing engine fault codes
• Turning off the Malfunction Indicator Light (MIL)
• Live engine data
• Freeze frame
• I/M readiness test
• Lambda sensor test
• EVAP system test
• Display vehicle information (VIN, CVN, and more)
• OBD-II Trouble Code Database
• Support for OBD-II test modes, including CAN, ISO9141, KWP2000, J1850 VPW, and J1850 PWM protocols

ADAS Calibration

The Autel MaxiSYS MS909CV includes software for calibrating driver assistance systems in commercial vehicles. Dynamic ADAS calibrations can be performed on supported Class 3 through 8 vehicles.For static calibrations, you must purchase a compatible Autel CV ADAS calibration frame, calibration targets, and other necessary accessories.

Autel MaxiFlash VCI

The MaxiFlash VCI functions as a wireless diagnostic adapter and also as a PassThru interface for use with compatible original vehicle manufacturer diagnostic software.

• Support for D-PDU, SAE J2534, and RP1210 protocols
• Wireless communication via Wi-Fi and Bluetooth
• Connectivity via USB or Ethernet
• Support for vehicles with 12V and 24V electrical systems
• Support for modern DoIP and CAN FD protocols
• Use as a PassThru interface for OEM software

Advanced coding and programming

With the MaxiSYS MS909CV, you can perform advanced diagnostic tasks such as coding, adaptation, and programming of control units.

• Coding – used to modify the configuration or adaptive data of control units after repairing or replacing components.
• Programming – allows software to be uploaded to a supported control unit via the D-PDU, SAE J2534, or RP1210 interface.

To work with original OEM software, a separate subscription from the vehicle manufacturer, installation of the appropriate program, and a stable internet connection may be required. The scope of coding and programming varies by vehicle.

Battery and Charging System Test

The package includes the Autel MaxiBAS B200 tester, which connects wirelessly to the diagnostic tablet.

• In-vehicle battery test
• Test of a separately disconnected battery
• Battery condition evaluation
• Starter test
• Alternator and charging system test
• Saving and viewing test results

Supported protocols

• D-PDU
• SAE J2534
• RP1210
• SAE J1939
• SAE J1708
• PLC J2497
• ISO 15765
• ISO 14229 UDS
• ISO 13400 DoIP
• CAN FD
• ISO 9141
• ISO 14230
• SAE J1850 PWM and VPW, and more

Brief Overview of Autel Models

• Diagnostic and Service Functions: MK808S, MK808K-BT, MK808S-TS, MK900, MK900TS, MX900, MX900TS
• Diagnostic and service functions and programming: MP808S, MP808S-TS, MP900, MP900BT, MP900TS, DS900, DS900BT, DS900TS
• Advanced models: MK906BT, MK906 Pro, MK906Pro-TS, MK908P, MS908S3, MS Elite II, MS906 Pro, MS906 Pro-TS, MS909, MS909EV, MS909CV, MS919
• Top-of-the-line models: Ultra Lite, Ultra EN, Ultra, Ultra EV
• IMMO Series: IM508S, IM608 II Pro

Why choose the Autel MaxiSYS MS909CV?

• Professional diagnostics for commercial vehicles, buses, and work equipment
• Diagnostics for all available control modules, live data, and actuator tests
• Advanced service functions, adaptation, coding, and programming
• Module topology (mapping) for supported vehicles
• Support for trucks, construction, and agricultural equipment
• MaxiFlash VCI with support for D-PDU, SAE J2534, and RP1210
• MaxiBAS B200 battery tester, multimeter, and current clamps included in the package
• Support for ADAS dynamic calibrations
• 22+ supported languages, including Czech

Updates

With your purchase, you receive free updates for 1 year from the date of device registration. After the free updates expire, you can continue to use the device. Further updates are therefore not mandatory, but without purchasing them, you will not have access to support for newer vehicle models, new features, and certain services requiring a connection to Autel servers.

Supported Brands and Systems (1996–2026)

Trucks and Light Commercial Vehicles

Agrale, Autocar, Capacity, Chevrolet, DAF, Dodge, RAM, Fiat, Ford, Foton, Freightliner, GMC, Great Wall, Hino, Hyundai, International, Isuzu, Iveco, Kenworth, Kia, Mack, MAN, Mercedes-Benz, Mitsubishi, Mitsubishi Fuso, Nissan, Peterbilt, Renault Trucks, Scania, Sterling, Toyota, UD Trucks, Volkswagen, Volvo, Western Star, Workhorse, and others

Buses

Agrale, Blue Bird, Hino, IC Bus, Isuzu, Mercedes-Benz, Mitsubishi Fuso, Nova Bus, Prevost, Renault, Setra, Thomas Built, Toyota, Volkswagen, Volvo, and others

Engines, Transmissions, and Brake Systems

Aisin, Allison, Bendix, Bosch, Caterpillar, Cummins, Detroit, Eaton, International, Iveco, Mack, Mercedes-Benz, MTU, MWM, Navistar, PACCAR, Power Stroke, Volvo, WABCO, ZF Meritor, and others

Trailers and Semi-Trailers

Bendix, Haldex, Knorr-Bremse, WABCO, ZF Meritor, and others

Construction Equipment

Ahlmann, Ammann, ASV, Atlas, Bomag, Case, Caterpillar, Daewoo, Ditch Witch, Doosan, Dressta, Dynapac, Gehl, Gradall, Grove, Hitachi, Hydrema, Hyundai, JCB, John Deere, Kawasaki, Kobelco, Komatsu, LeeBoy, Liebherr, LiuGong, Manitou, New Holland, Sakai, Sennebogen, Skyjack, Sunward, Tadano, Terex, Vermeer, Weiler, Weycor, Wirtgen, XCMG, Zoomlion, and others

Agricultural Machinery

Branson, Case IH, Caterpillar, Challenger, CLAAS, Gleaner, Hagie, Jacto, JCB, John Deere, Kawasaki, Kubota, Landini, Laverda, MacDon, McCormick, Miller, MTZ Belarus, New Holland, Rogator, Rostselmash, Stara, Tatoma, TYM, Valpadana, Versatile, and others

Supported Languages

The device supports various languages. After receiving the device, please send us the serial number, and we will authorize the device in the language of your choice. The translation may not be 100% accurate. The range of translations is constantly expanding, and in our experience, the translations are quite usable and will make your work easier.

List of supported languages: Czech, English, Arabic, Dutch, French, German, Hebrew, Indonesian, Italian, Japanese, Korean, Persian, Polish, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Portuguese, Turkish, Thai, Vietnamese, Romanian.

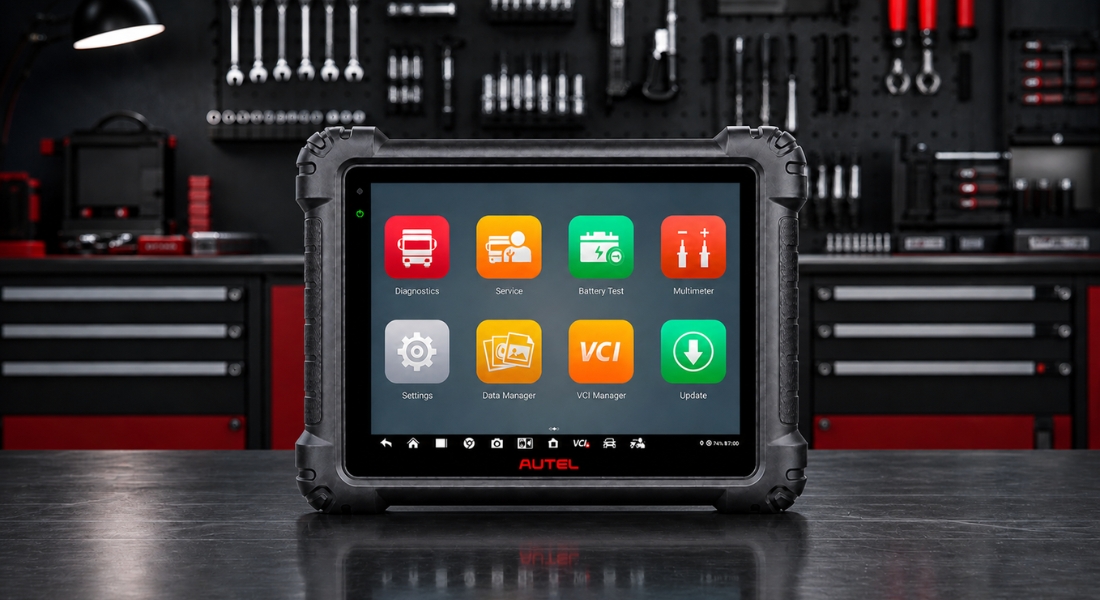

Hardware Specifications

• Operating System: Android 10.0
• Processor: Octa-core
• Memory: 4 GB RAM / 128 GB
• Display: 9.7" touchscreen
• Resolution: 1536 × 2048 pixels
• Battery: 15,000 mAh
• Operating temperature: 0 to 50 °C
• Storage temperature: -20–70 °C
• Operating humidity: 5–95% (non-condensing)
• Dimensions: 304.4 × 227.8 × 42.5 mm

Package Content

• Autel MaxiSYS MS909CV
• Autel MaxiFlash VCI Diagnostic Adapter
• Autel MaxiBAS B200 Battery Tester
• DM100 Digital Multimeter
• 400A Current Clamp
• Main Cable V2.0 Diagnostic Cable
• 9-pin Deutsch adapter
• 6-pin Deutsch adapter
• UNI-4 universal adapter
• Set of test leads JW1 through JW10, 2 of each type
• 2× multimeter test leads
• 2× alligator clips
• 2× multimeter test probes
• Power cable with battery terminals
• Charger for connection to a 12V car outlet
• 2× spare fuses
• 230V charger
• USB cable
• USB-C cable
• Case for test probes and accessories
• Practical carrying case
• Soft cloth
• User manual
• Quick start guide available for online download
• Detailed user manual available for online download (approximately 160+ pages)
