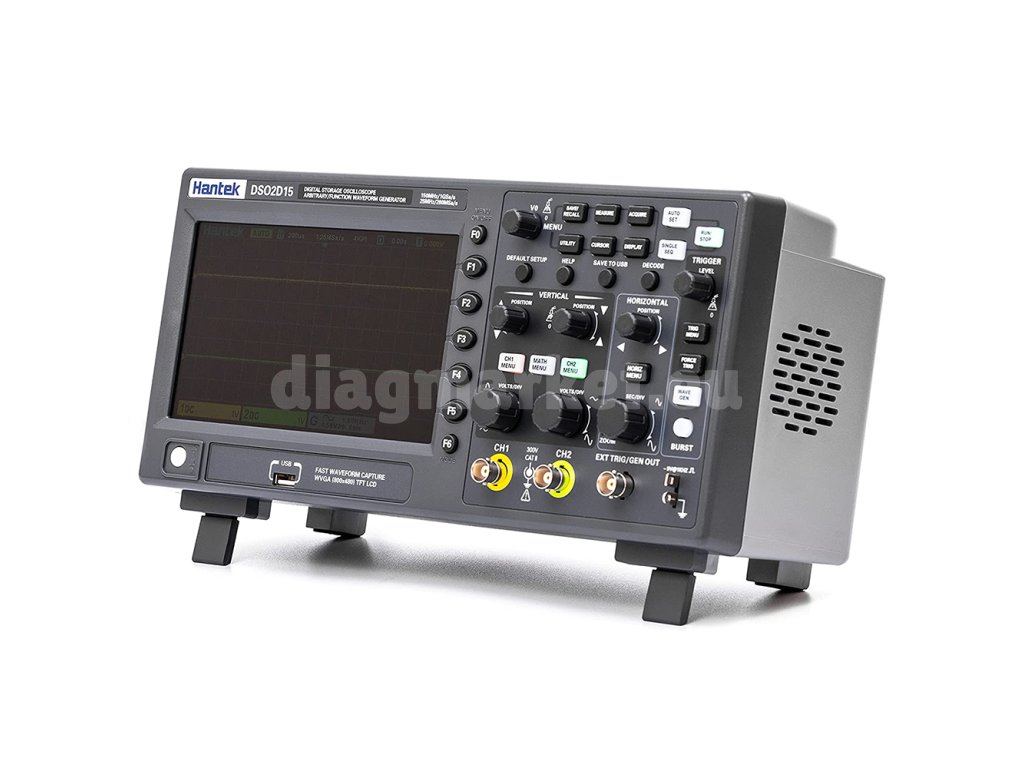

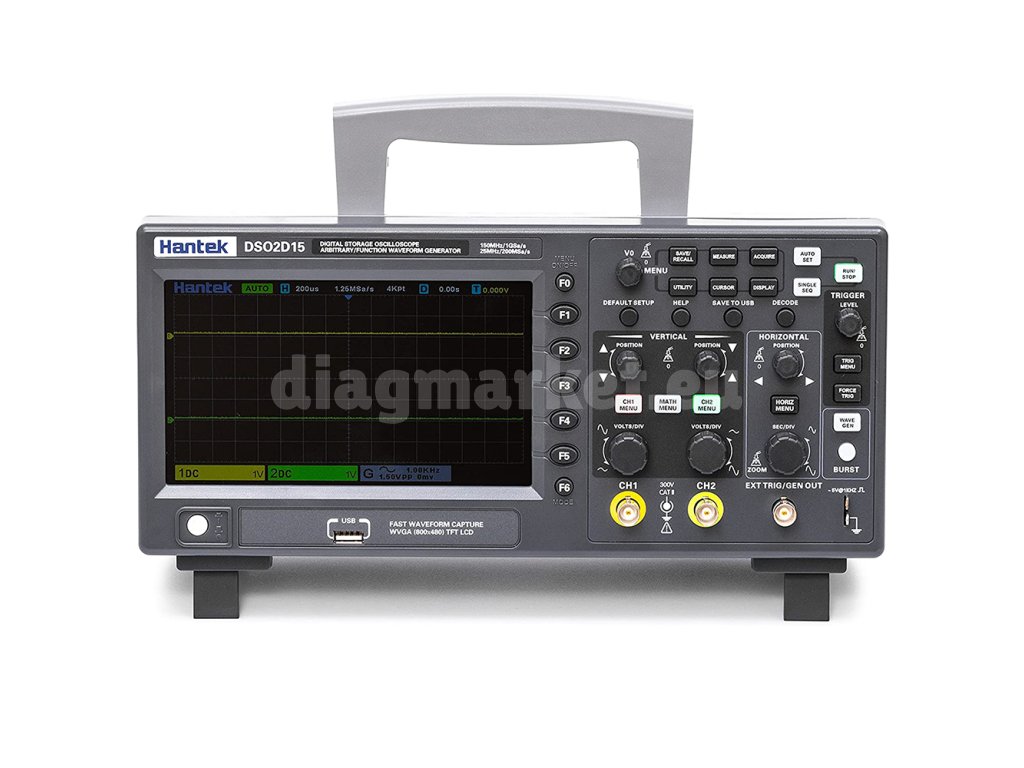

Hantek DSO2D15 2-channel oscilloscope
Code: 1209Product detailed description
Hantek DSO2D15 is a basic two-channel oscilloscope, but it can surprise with its functions and will surely please both hobbyists and advanced users. With a bandwidth of 150MHz and a built-in function generator, it also features I2C, SPI, UART/RS232 and CAN decode and trigger capabilities. DSO2D15 has a sampling rate of up to 1GSa/s and memory depth is 8Mpts, in addition, it has the ability to measure AC and DC current up to 300 VRMS. The oscilloscope is passively cooled, without a fan, so it is completely silent. There is also a USB interface for saving measurement results to a PC or memory card.
Specifications
| Oscilloscope | ||
| Bandwidth | 150 MHz | |
| Sampling Frequency | 1 GSa/s (1 channel) 500 MSa/s (2 channels) |
|
| Memory depth | 8 Mpts (1 channel) 4 Mpts (2 channels) |
|
| Channels | 2 | |
| Vertical Resolution | 8 bits | |
| Horizontal scale | 2 ns/div - 100 s/div | |
| Vertical sensitivity | 2 mV/div - 10V/div | |
| Rise time | 2.4 ns | |
| Decoding and triggering | I2C, SPI, UART/RS232 and CAN | |
| Mathematical operations | +, -, ×, ÷, FFT | |
| Max Voltage | 300 VRMS, CAT II 300V | |
| Generator Features | ||
| Frequency range | 25 MHz | |
| Channels | 1 | |
| Sample Ratio | 200 MSa/s | |
| Waveforms | Sine, square, ramp, Exp, noise, DC, ARB | |
| Generally | ||
| View | 7" 800 x 480 | |
| Interface | USB host, USB device | |
| Weight | 1.9 kg | |
Package Content
- Hantek DSO2D15
- USB cable
- power cable
- 1 probe
- 2x BNC cable with croc clamp
- manual
Additional parameters
| Category: | Oscilloscopes |
|---|---|
| EAN: | 6902693108831 |
