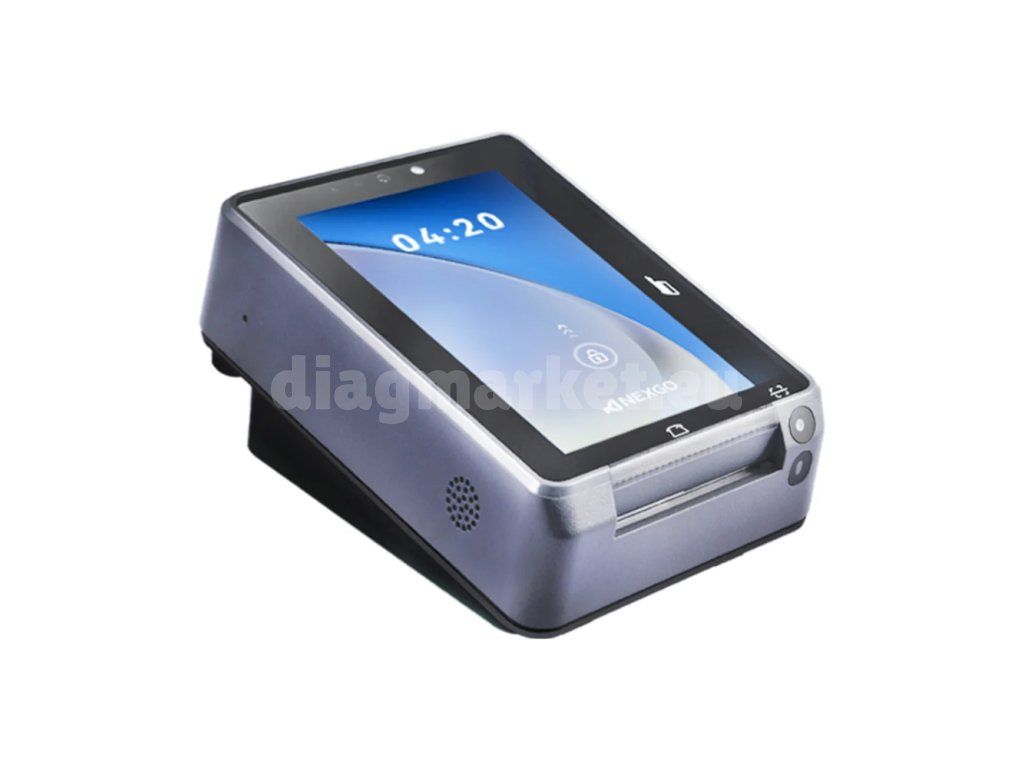

Nexgo UN20

Product detailed description

The NEXGO UN20 is an unattended payment terminal designed not only for vending machines and self-service kiosks, but also for parking systems. It is equipped with a 5″ HD touchscreen and supports all common types of payment cards – NFC, chip, and magnetic stripe – as well as QR code scanning. It offers fast and stable connectivity via 4G, Wi-Fi, or LAN. High durability with IP65 rating and a wide temperature range are ideal for continuous operation even in harsh conditions.

Features

• IP65 rating and IK09 mechanical resistance
• Clear 5″ HD touchscreen
• Intuitive operation thanks to Android 11
• Support for all common payment methods: magnetic stripe cards, chip cards (IC), contactless payments (NFC)
• Support for QR codes and barcodes
• Fast and stable connection via 4G/LTE, Wi-Fi, LAN (Ethernet), and Bluetooth

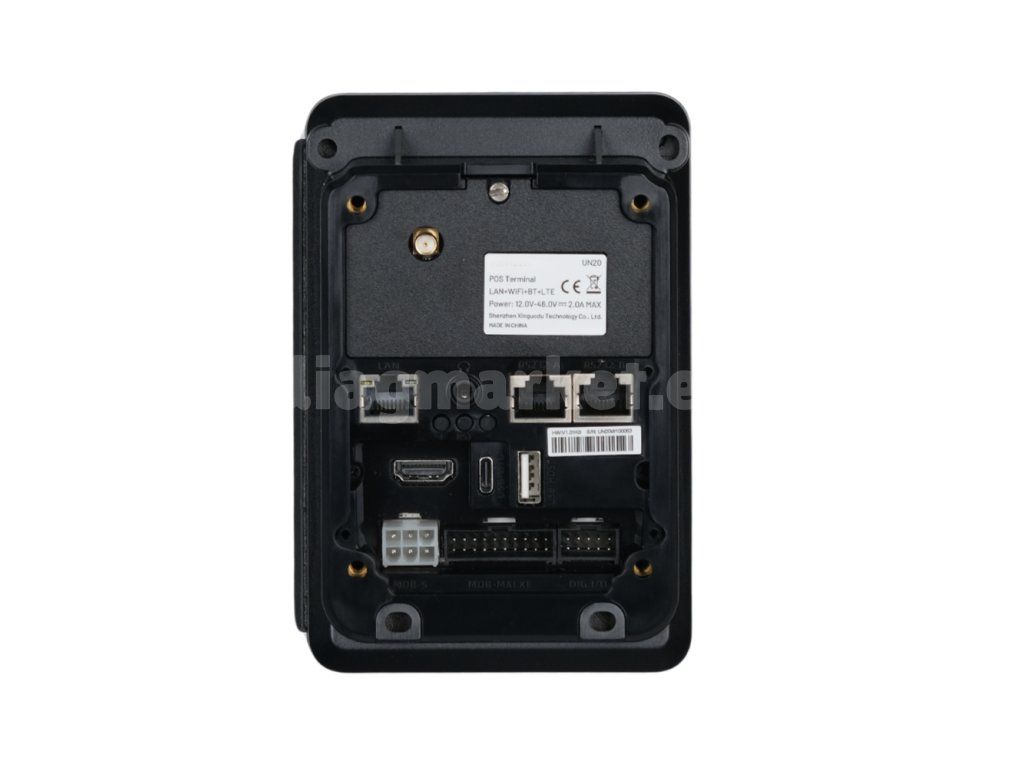

• Support for MDB, RS232, and USB industrial interfaces
• 1 reset button and 2 volume control buttons
• Power supply via DC 12–48 V (support for digital I/O, MDB slave, master, and executive, RS232)
• Power supply via AC 19-30 V (supports MDB master and executive)

Certifications

The device meets the highest security and payment standards, including PCI PTS 6.x, EMV L1 & L2 and EMV Contactless L1. It supports global card schemes Visa payWave, Mastercard PayPass, QuickPass, JCB, Discover and American Express, including QPBOC L1 certification. It meets the requirements of CE, RoHS and PTCRB certifications and is also suitable for use in industrial environments thanks to ATEX certification.

Supported Languages

English, Czech, Slovak, German, French, Spanish, Italian, Portuguese, Dutch, Polish, Hungarian, Romanian, Bulgarian, Croatian, Slovenian, Serbian, Bosnian, Macedonian, Albanian, Greek, Danish, Swedish, Norwegian, Finnish, Estonian, Latvian, Lithuanian, Irish, Maltese, Icelandic, Russian, Ukrainian, Belarusian, Turkish, Arabic, Hebrew, Persian, Urdu, Hindi, Bengali, Tamil, Telugu, Marathi, Gujarati, Kannada, Malayalam, Punjabi, Sinhala, Thai, Vietnamese, Indonesian, Malay, Filipino, Japanese, Korean, Chinese (Simplified), Chinese (Traditional), Mongolian, Tibetan, Nepali, Lao, Khmer, Burmese, Georgian, Armenian, Azerbaijani, Kazakh, Uzbek, Kyrgyz, Tajik, Turkmen, Swahili, Afrikaans, Zulu, Xhosa, Amharic, Somali

Device Specifications

• Protection Rating: IP65
• Operating System: Android 11
• Processor: Quad-Core Cortex-A53, 2.0 GHz
• Display: 5″ HD with 1280×720 resolution
• Camera: front 2 MP, bottom 2 MP
• Operating temperature: −20 °C to +70 °C
• Storage temperature: -30 °C to 80 °C
• Dimensions: 146 × 101 × 57 mm

Package Content

• Nexgo UN20
• MDB cable
