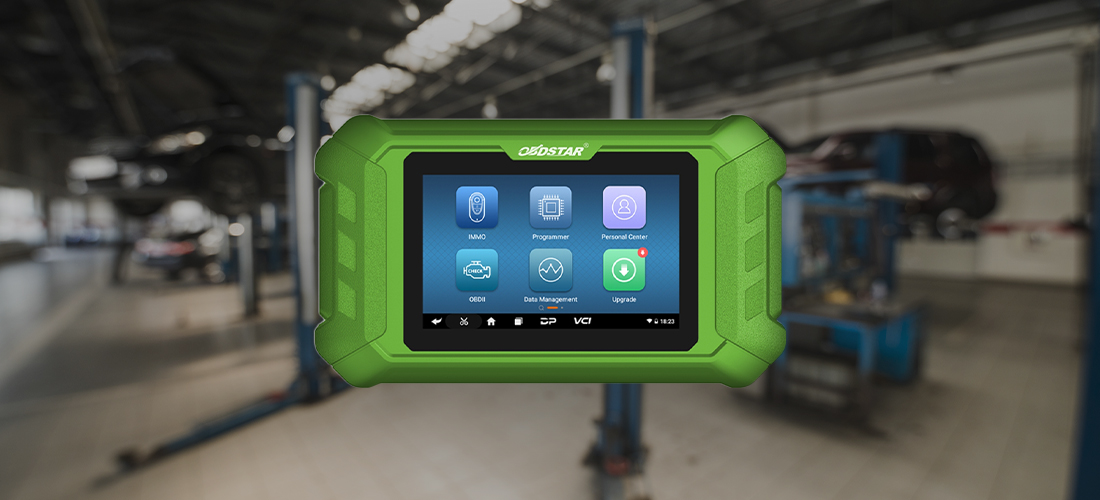

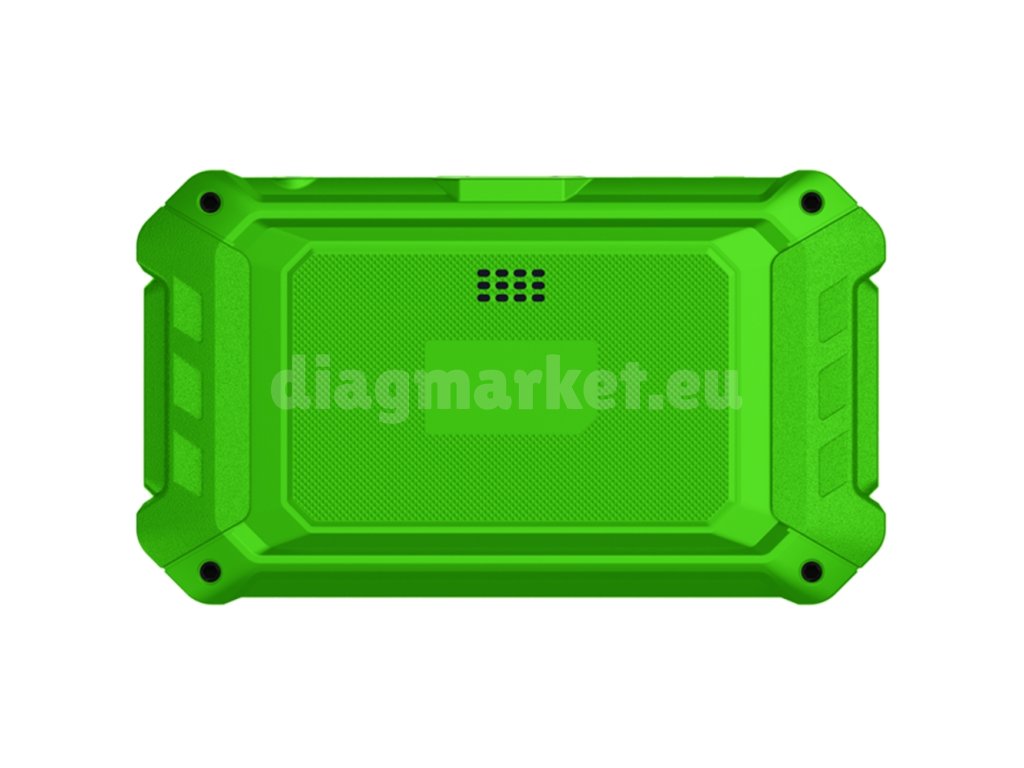

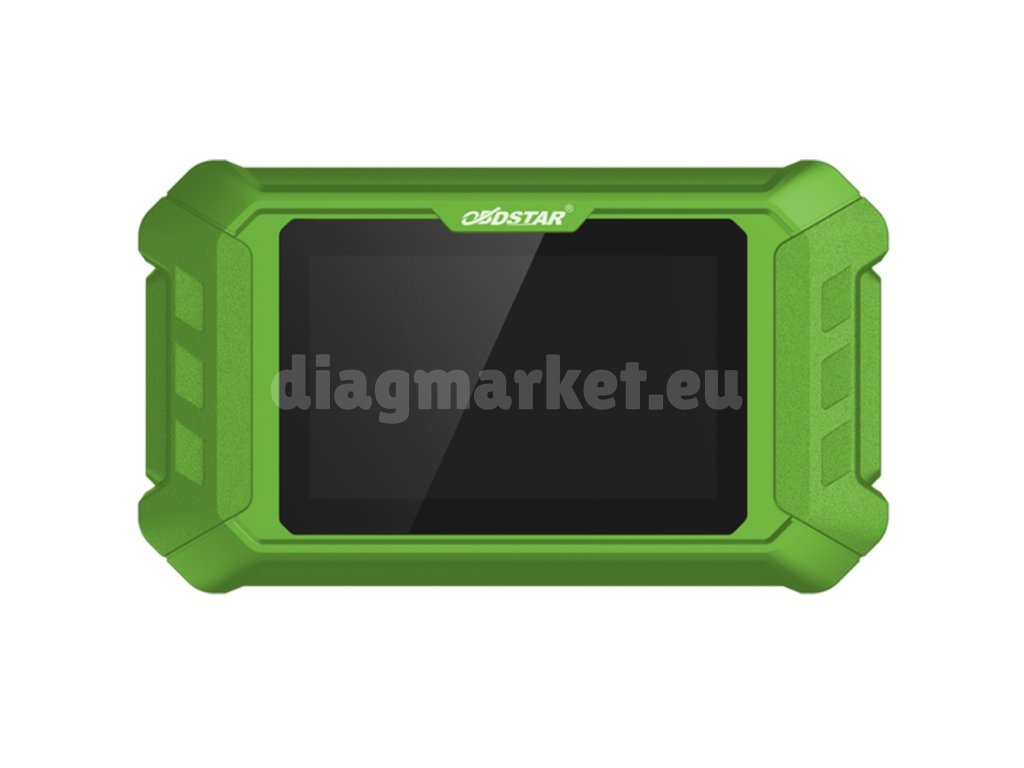

OBDStar KeyMaster 5

Product detailed description

Keymaster 5 from OBDStar offers functions for advanced work with immobilizer units, keys, and remote controls. A big advantage is the support for an RFID reader. The device is available in English.

Features

• Key programming (immo)
• Remote control testing
• Transponder reading and writing
• Eeprom / MCU reading and writing
• OBD-II functions

Updates

You will receive free updates for 1 year with your purchase. After the free updates expire, further updates are not mandatory. New updates can be purchased at a discounted price after the current ones expire. Updates can also be purchased later after a certain period of time, but the price may be higher.

Why Choose OBDSTAR Keymaster?

• Great price/performance ratio
• Wide support for cars and motorcycles

Supported Vehicles

• Passenger cars
• Motorcycles

Hardware Specifications

• Operating system: Android 5.1.1
• Processor: 4-core processor
• Display: 5" touchscreen with 800 x 480 pixel resolution
• Operating temperature: -20 - 55 °C
• Storage temperature: -20 - 70°C
• Operating humidity: 5 - 95% (non-condensing)
• Battery capacity: 2600 mAh

Package Content

• OBDSTAR Keymaster
• Main cable
• P001 programmer
• C001/C002 circuit board
• W001 cable with jumpers
• OBD-II adapter with jumpers
• 3-pin Honda adapter
• 10-pin Hyundai adapter
• 20-pin Kia adapter
• Charger
• User manual
