OBDStar MP001 kit

Product detailed description

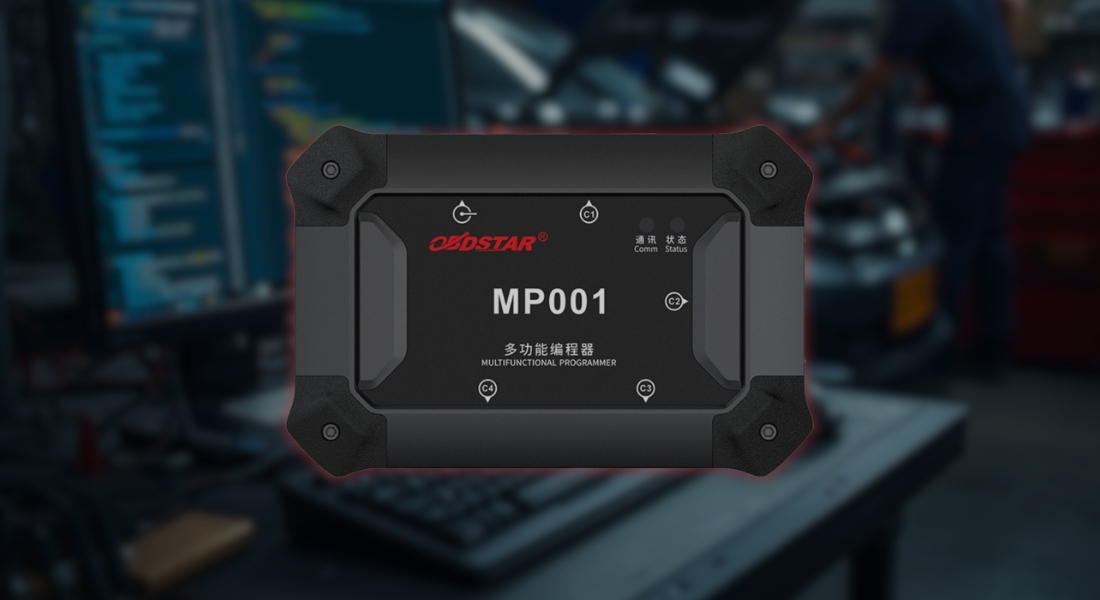

OBDSTAR MP001 Programmer is the latest multifunctional programmer from OBDSTAR, designed for professional work with control unit and memory data. The device supports EEPROM/MCU reading and writing, cloning, data processing, and other specialized operations for passenger cars, trucks, electric vehicles, motorcycles, and boats;the MP001 is primarily intended for users who need to expand the capabilities of compatible OBDSTAR devices with advanced flashing functions.

Key Features

• EEPROM / MCU Read and Write
• Data Cloning and Control Data Processing
• Read PinCode – PIN Code Reading
• IMMO data synchronization
• Renew Key – key renewal
• BENZ FBS3 key programming
• SAS Reset – steering wheel angle sensor reset
• Body / Chassis / Other data processing – processing of body, chassis, and other system data
• Dashboard odometer calibration
• Reading / writing ECU data for CAR / HD / Marine / Motorcycle
• Read / Write RH850 / V850

Function expansion for compatible OBDSTAR devices

The MP001 is not a standalone PC programmer but works in conjunction with selected OBDSTAR devices. According to the manufacturer, it is compatible with models such as KEYMASTER G3, DC706, or P50. The manufacturer also states that the device does not need to be paired with a single specific device, so it can be used with multiple compatible devices. Another practical advantage is its compatibility with certain cables previously used for the P002 and P003 adapters, for example for selected operations on Toyota, Ford, Honda, Yamaha, or Suzuki vehicles.

Technical Specifications

• CPU: STM32F407VET6

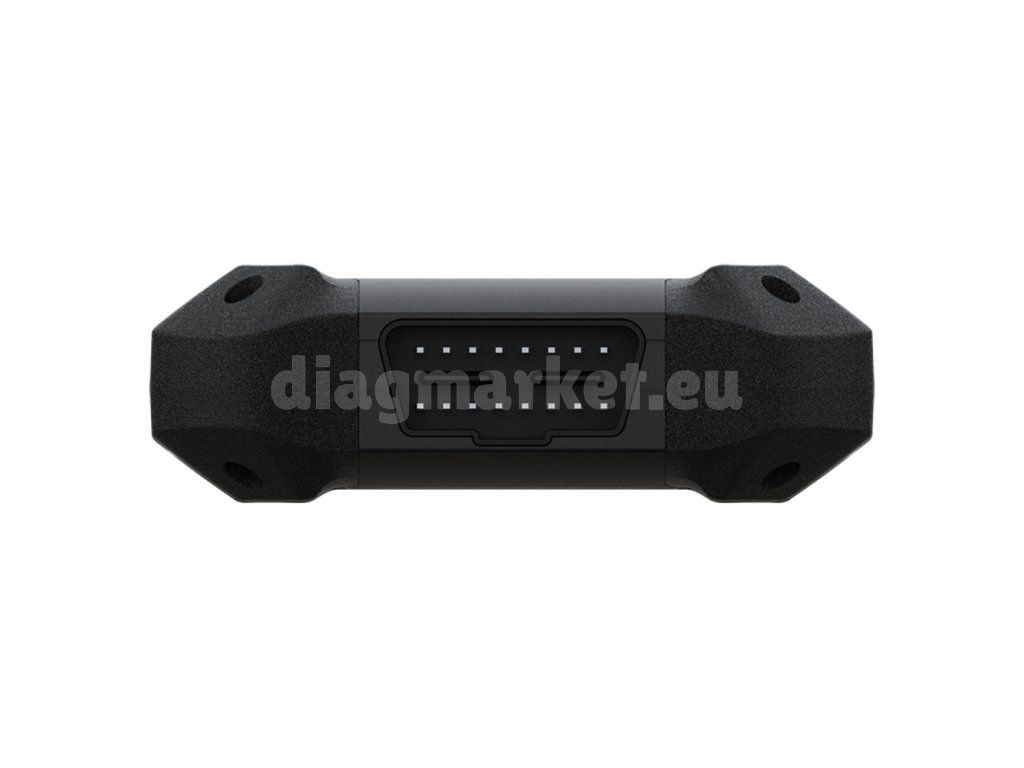

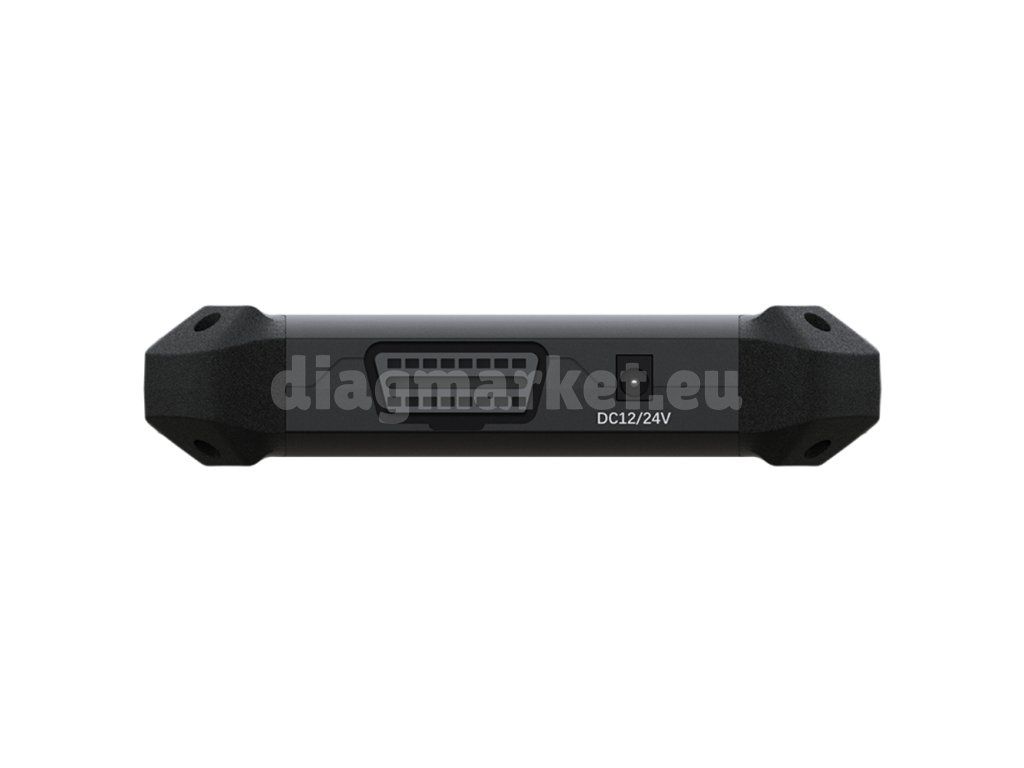

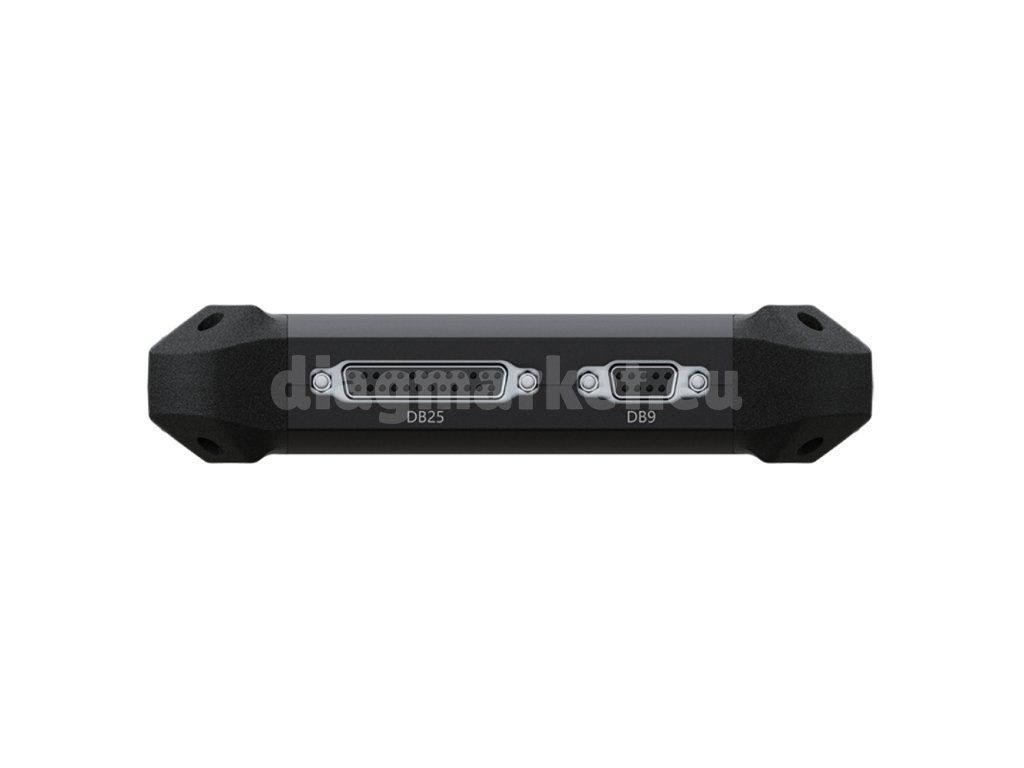

• Interfaces: DC power connector, OBD Female, OBD Male, DB9, DB25
• Input voltage: DC 12 V / 24 V
• Battery: 500 mA
• Weight: approx. 260 g
• Operating temperature: -10 °C to 55 °C
• Dimensions: 165 × 110 × 35 mm

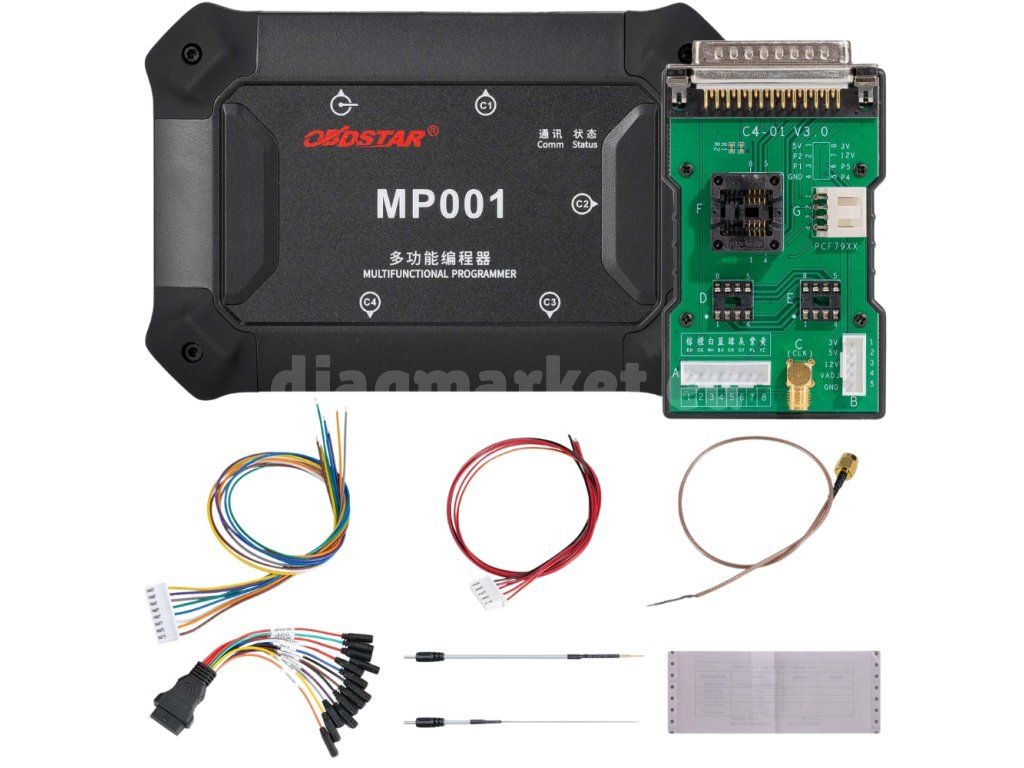

Package Content

• OBDSTAR MP001
• 1pc x OBDSTAR C4-01 Host
• 1pc x W004 Read/Write Cable
• 1pc x W005 Read/Write Cable
• 1pc x OBDSTAR BENCH-A V3 ECU Bench Jumper
