Owon HDS272 portable oscilloscope

Code: 1200
Brand: Owon
€225 €185,95 excl. VAT
In stock
Delivery to:
10.12.2024
Delivery offer

Portable, two-channel oscilloscope with multimeter function.

Detailed information

Product detailed description

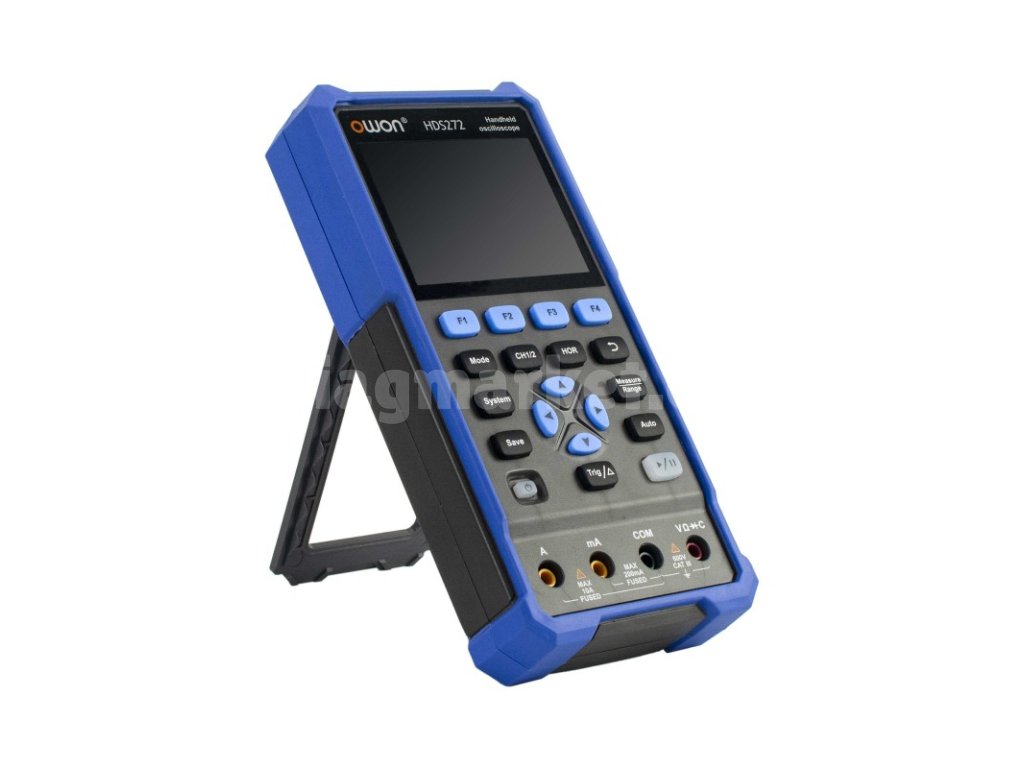

The Owon HDS272 is a portable two-channel oscilloscope that can also be used as a multimeter. The instrument has a high contrast colour display suitable for outdoor use and is powered by a pair of 18650 batteries that last up to 6 hours of continuous operation. You can connect the oscilloscope to a computer via USB-C and use it with Owon software. The device can be controlled with the SCPI, or charged with a power bank. The HDS200XXX series features a larger screen and larger internal memory.

Signals can be easily recorded and stored in the internal memory, which is capable of storing up to 8,000 data points. Waveforms can also be saved as images or CSV files and easily exported via USB to a computer.

In addition to its oscilloscope mode, this instrument also functions as a full-featured multimeter with 20,000 True-RMS counters. It has the ability to measure voltage, current, resistance, capacitance, continuity and diodes. Measured values are shown on the display in a large format, allowing for easy reading and recognition. Like conventional multimeters, it is also equipped with an automatic ranging function.

Oscilloscope Specifications

  • Sampling rate 250 MSa/s (single channel)
  • Sampling rate 125 MSa/s (dual channel)
  • Memory depth 8 kpts (single channel)
  • Memory depth 4 kpts (dual channel)
  • 8 bit vertical resolution
  • Edge triggering
  • Waveform sensing speed - 10,000 wfms/s
  • Ramp-up time ≤5 ns typ.
  • Vertical scale 10 mV/div - 10 V/div
  • Horizontal scale 5 ns/div - 1000 s/div
  • Vertical measurement parameters - vmax, vmin, vpp, mean, amplitude
  • Horizontal measurement parameters - period, frequency

Specifications

Oscilloscope specifications
Sampling ratio 250 MSa/s (single channel)
125 MSa/s (dual channel)
Memory depth 8 kpts (single channel)
4 kpts (dual channel)
Vertical resolution 8 bits
Trigger types Edge
Frequency update rate 10,000 wfms/s
Rise time ≤5 ns Type.
Vertical scale 10 mV/div - 10 V/div
Horizontal scale 5 ns/div - 1000 s/div
Measuring parameters (vertical) Vmax, Vmin, Vpp, mean, amplitude
Measurement parameters (horizontal) Period, frequency
Multimeter mode specifications
Specifications Range Accuracy (smallest range)
DC voltage 0.01 mV - 1000 V ±0,5 % + 5
AC voltage 0.01 mV - 750 V ±0,8 % + 5
DC current 10 μA - 10 A ±0,8 % + 2
Alternating current 10 μA - 10 A ±1% + 5
Resistance 0.01 Ω - 100 MΩ ±0,8 % + 3
Capacitance 1 pF - 2 mF ±3% + 10
Other modes Continuity test, diode test
View 20,000 counters (multimeter mode)
3.5" color LCD display (320 x 240)
Power supply 2x 18650 batteries (approx. 6 hours)

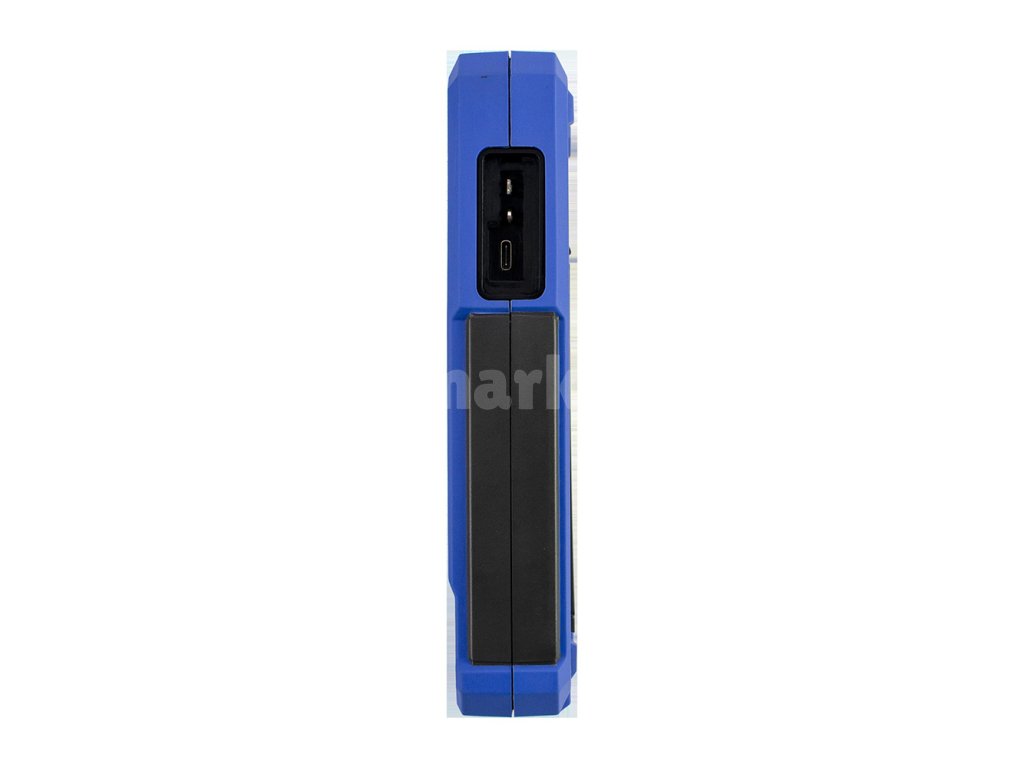

Connection USB-C
Dimensions 198 x 38 x 96 mm LxWxH
Weight 600 g (without batteries)

Package Content

  • Owon HDS272 oscilloscope
  • 2x 18650 batteries
  • USB cable
  • test cable set
  • probe
  • BNC cable
  • power adapter
  • carrying case
  •  manual
