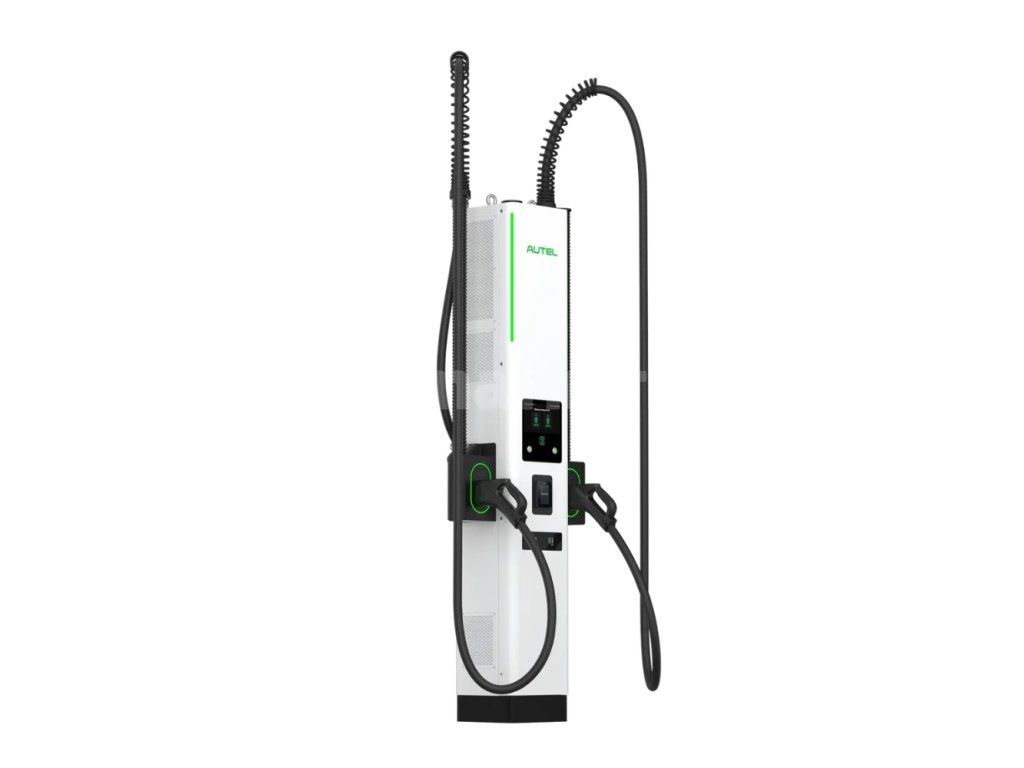

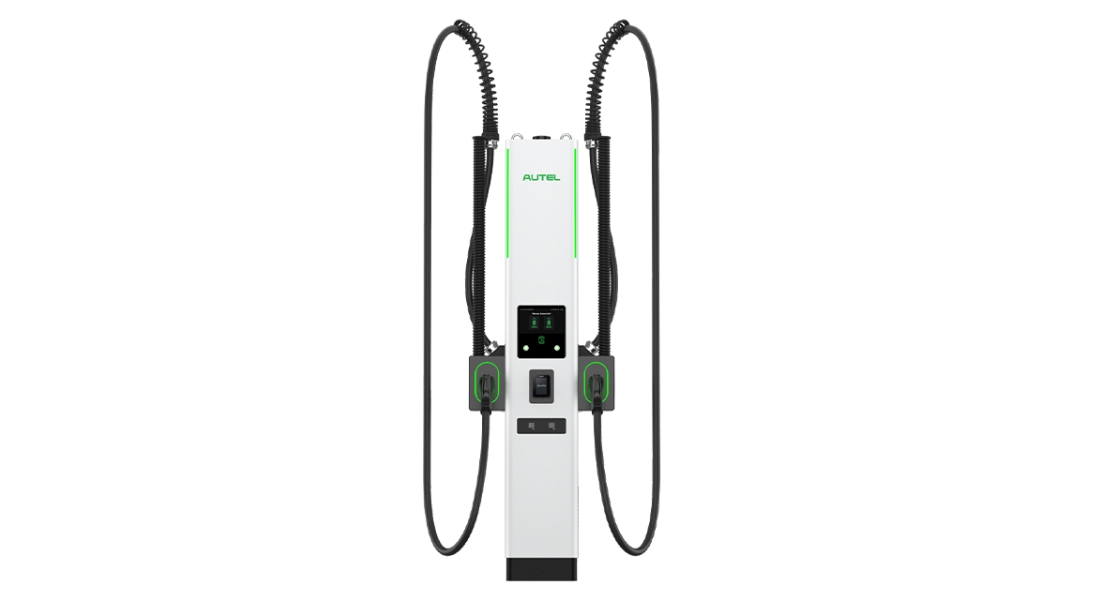

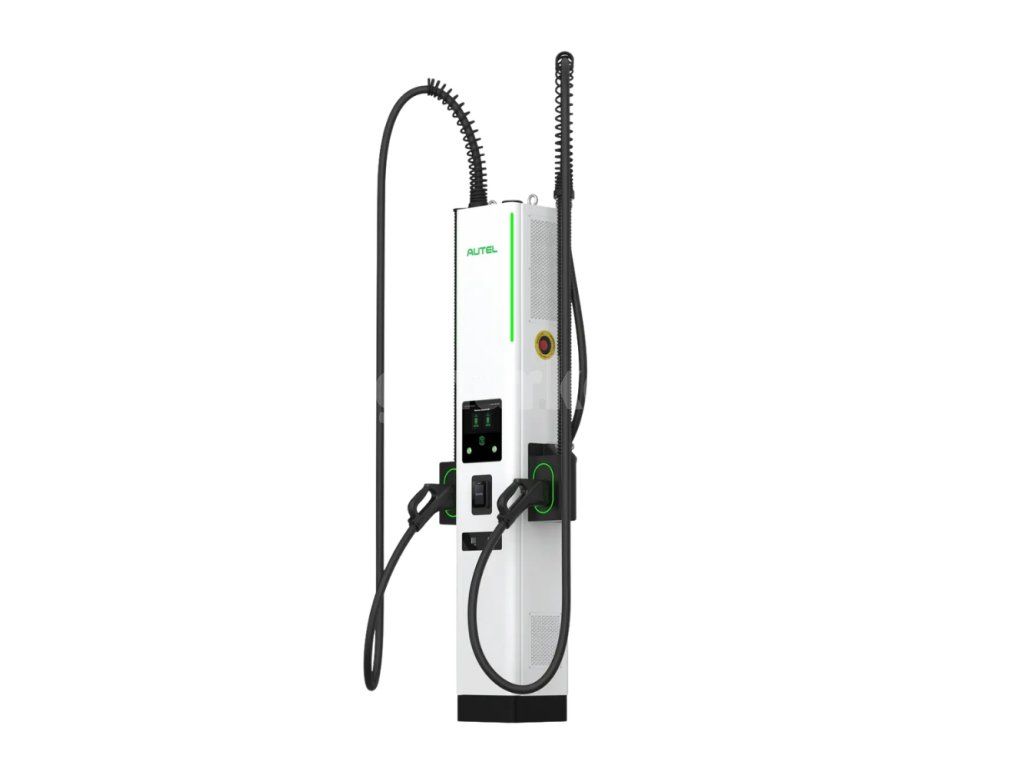

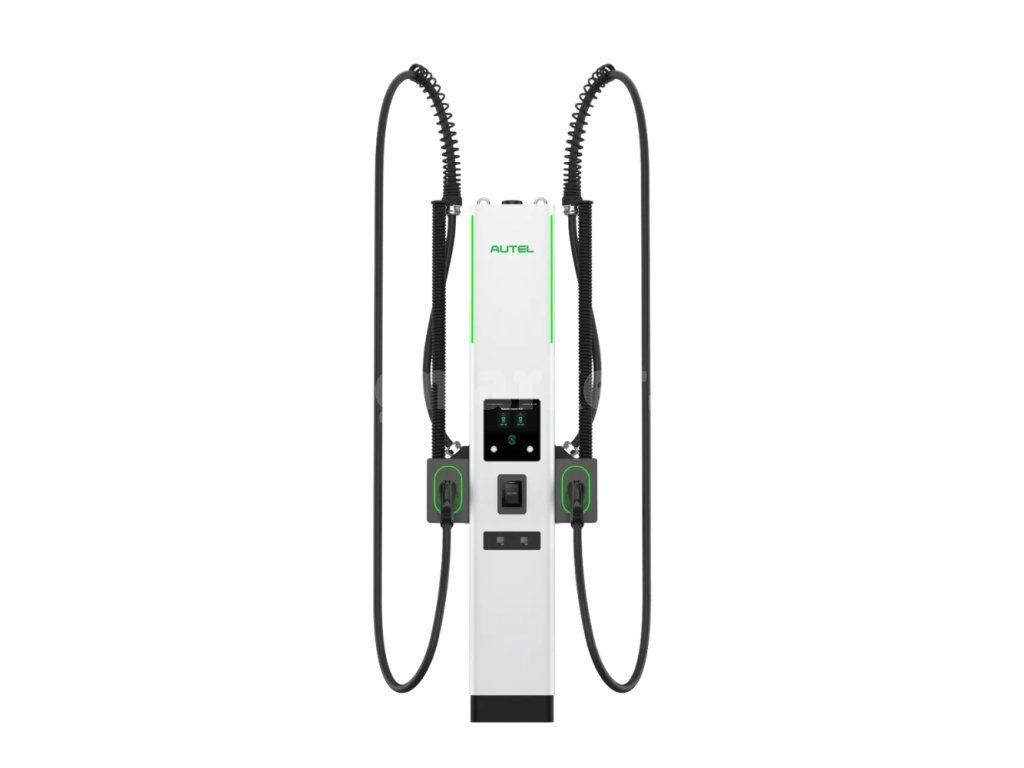

Autel MaxiCharger DT800 Charging Station

Product detailed description

The Autel MaxiCharger DT800 is a high-performance DC fast-charging station with a power output of up to 480 kW. It features liquid-cooled cables and thus is capable of operating continuously with very high currents for modern electric vehicles with high-voltage architecture. It offers two outputs with CCS2 connectors, a clear 8″ touchscreen display, and extensive communication options, including support for Plug & Charge. Of course, it includes remote management, OTA software updates, and compatibility with payment terminals, ensuring maximum convenience for both operators and end users. Thanks to its design, it is suitable even for high-traffic locations  – public fast-charging hubs, highway stations, depots, logistics centers, and fleet operations.

The dispenser must be properly paired with a power source Autel MaxiCharger DS480.

Features

• Power up to 480 kW DC
• Voltage range 150–1000 V
• Liquid-cooled charging cable with a rated current of 500 A and a peak current of up to 650 A
• Payment terminal supporting APP, RFID card, QR code, credit card (optional)
• Outputs: 1 / 2  CCS2 connector (depending on the selected variant)
• Plug&Charge function
• IP55 / IK10 protection rating
• ADA compliance
• EMC Class A

Updates

Software updates are performed via OTA (Over-The-Air) updates, which are downloaded through a web portal or FTP.

Certifications and Warranty

The charging station comes with a 24-month warranty, which can be optionally extended. The device complies with key safety standards and regulations IEC 61851-1, IEC 61851-21-2, IEC 61000, Eichrecht and is certified in accordance with the requirements of CE,  UKCA,  TR25, ETSI EN 303645, TÜV, and EMC ClassA.

Why Choose the Autel MaxiCharger DT800

• Ultra-fast charging thanks to power output of up to 480 kW
• Liquid-cooled cables for long-term operation without the risk of overheating or the need to limit power output
• Excellent connectivity and management thanks to OCPP, Plug & Charge, OTA updates and more
• Robust construction and high durability even in harsh outdoor conditions

Supported languages

Device Specifications

• Protection rating: IP54
• Cable length: 5 m
• Display: 8″ LCD display
• Operating altitude: 2,000 m
• Operating temperature: -30 – 55 °C
• Storage temperature: -40 – 70 °C
• Dimensions: 322 x 322 x 1960 mm

Package Content

• Autel MaxiCharger DT800
