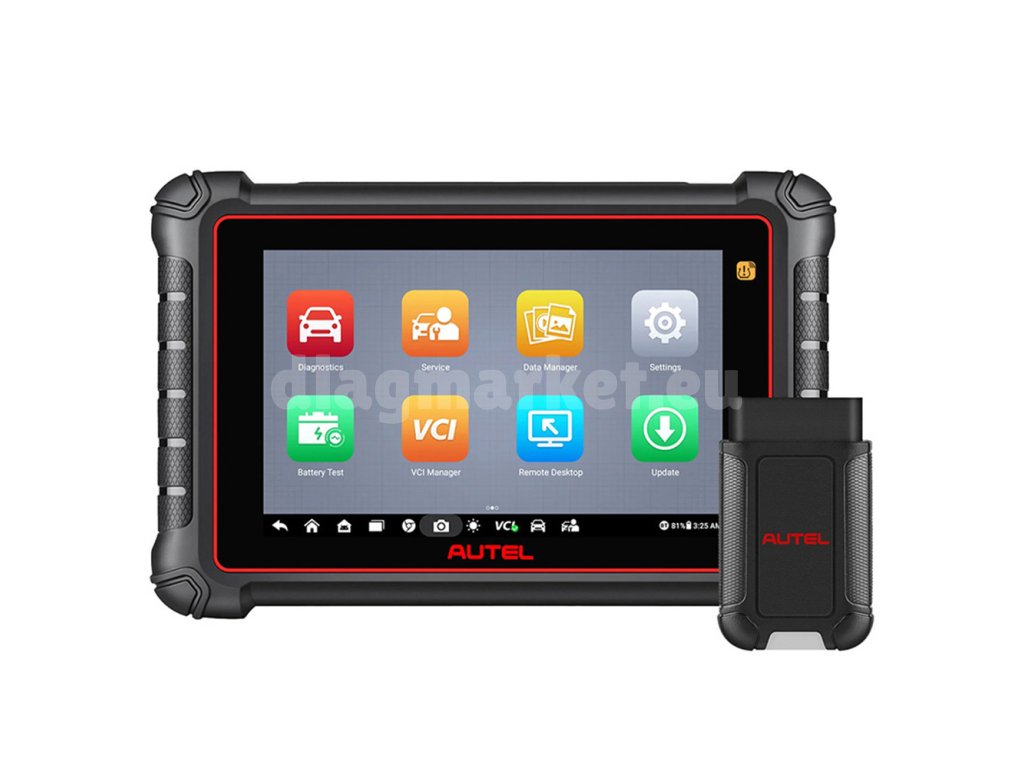

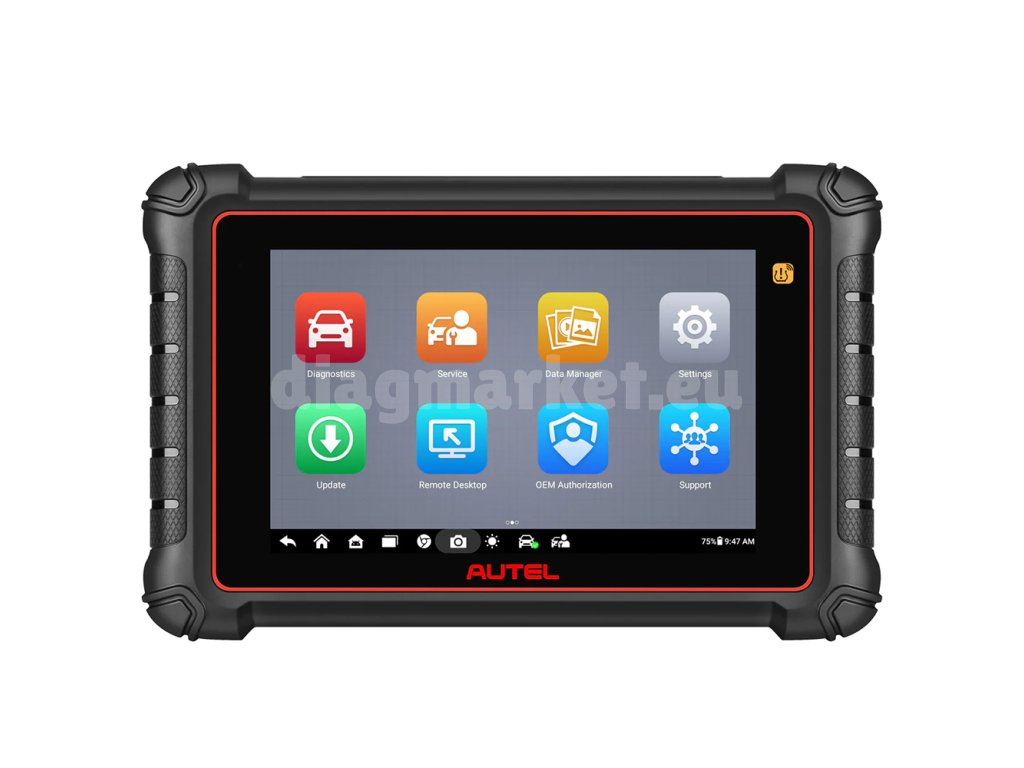

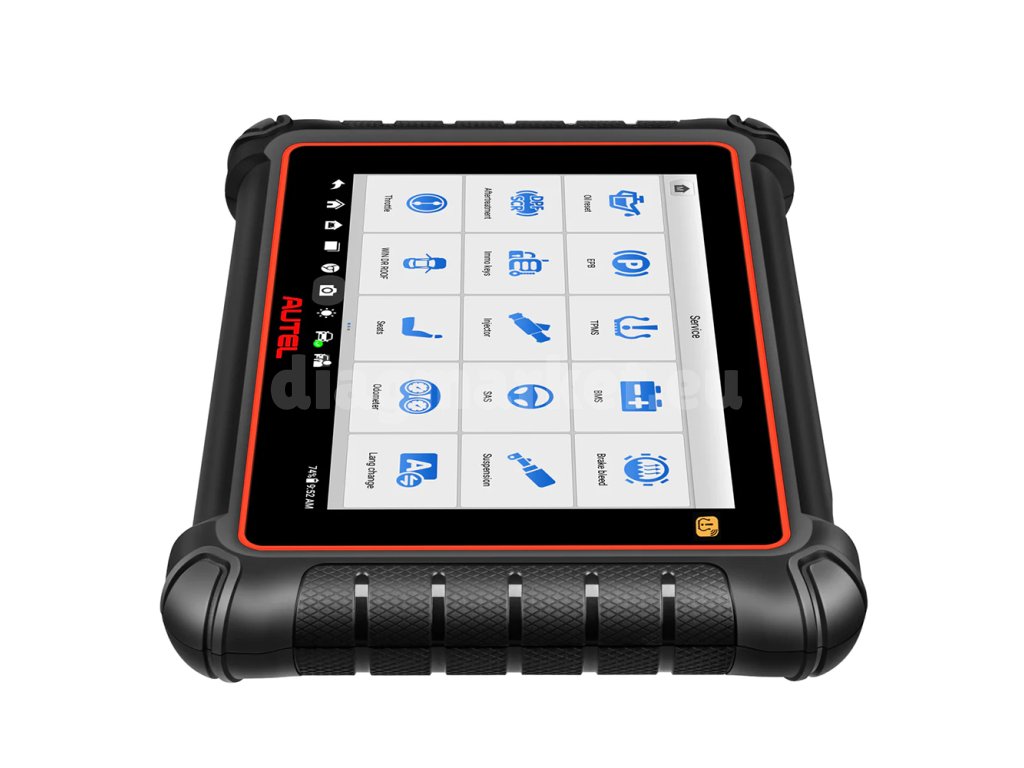

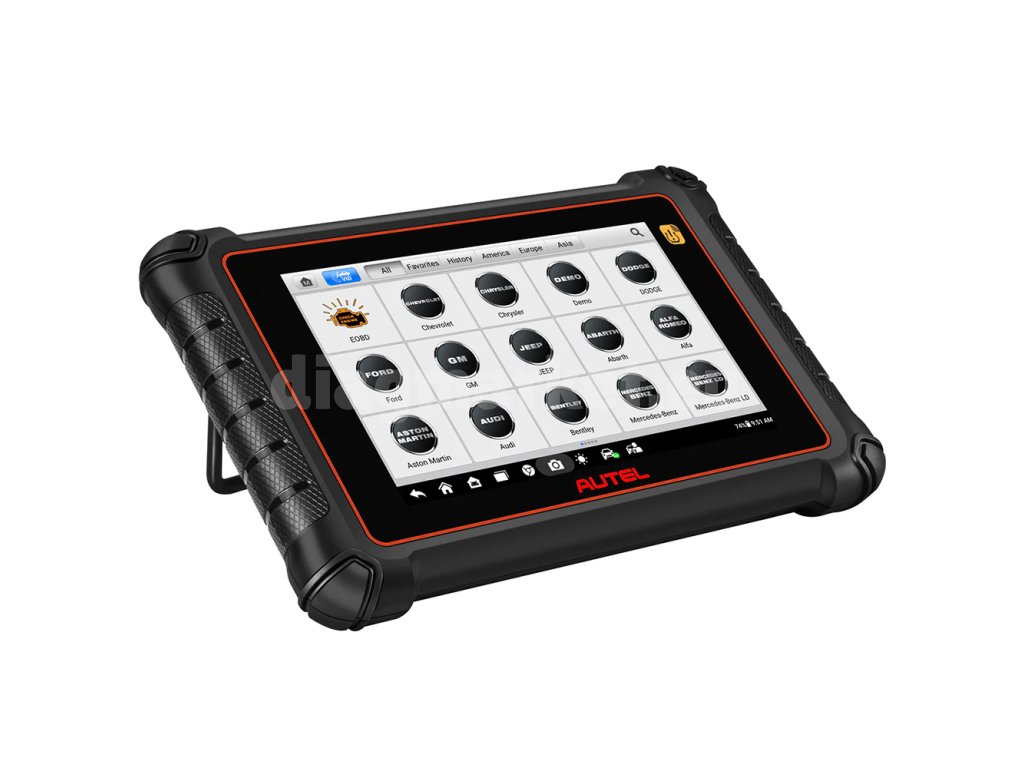

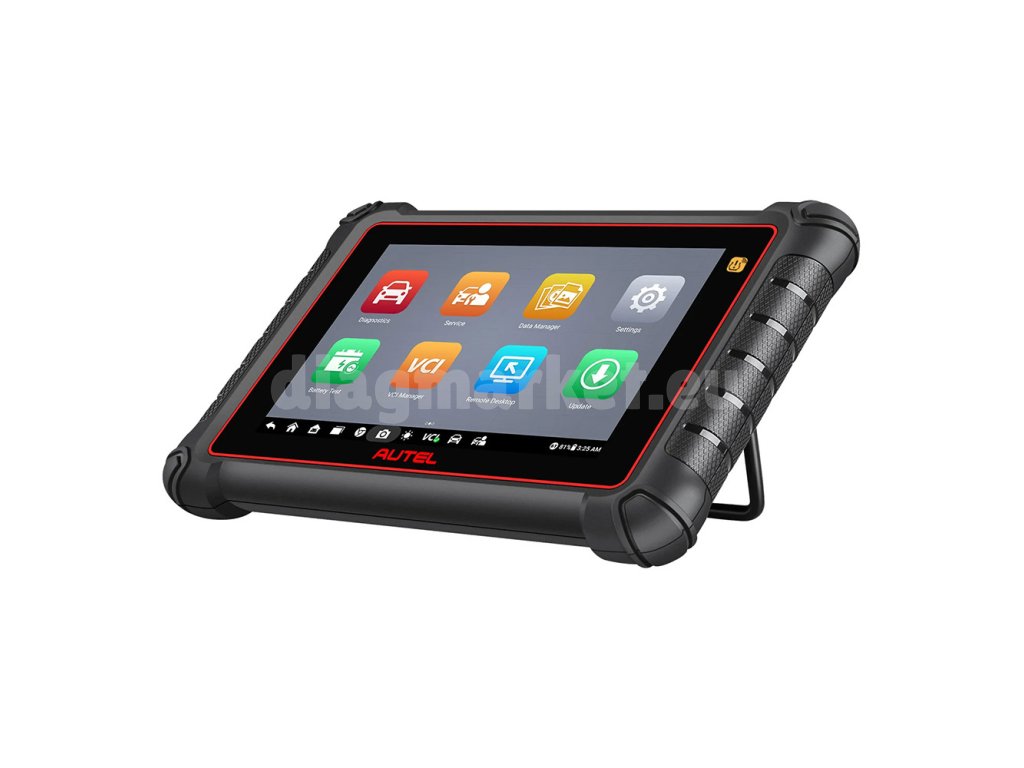

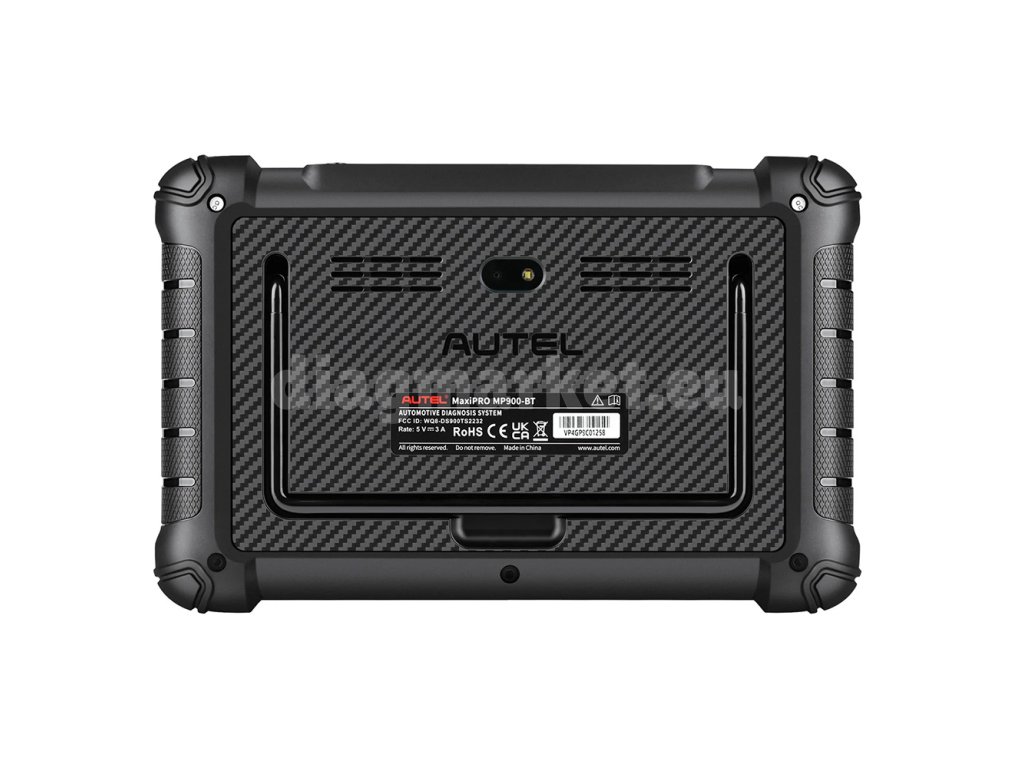

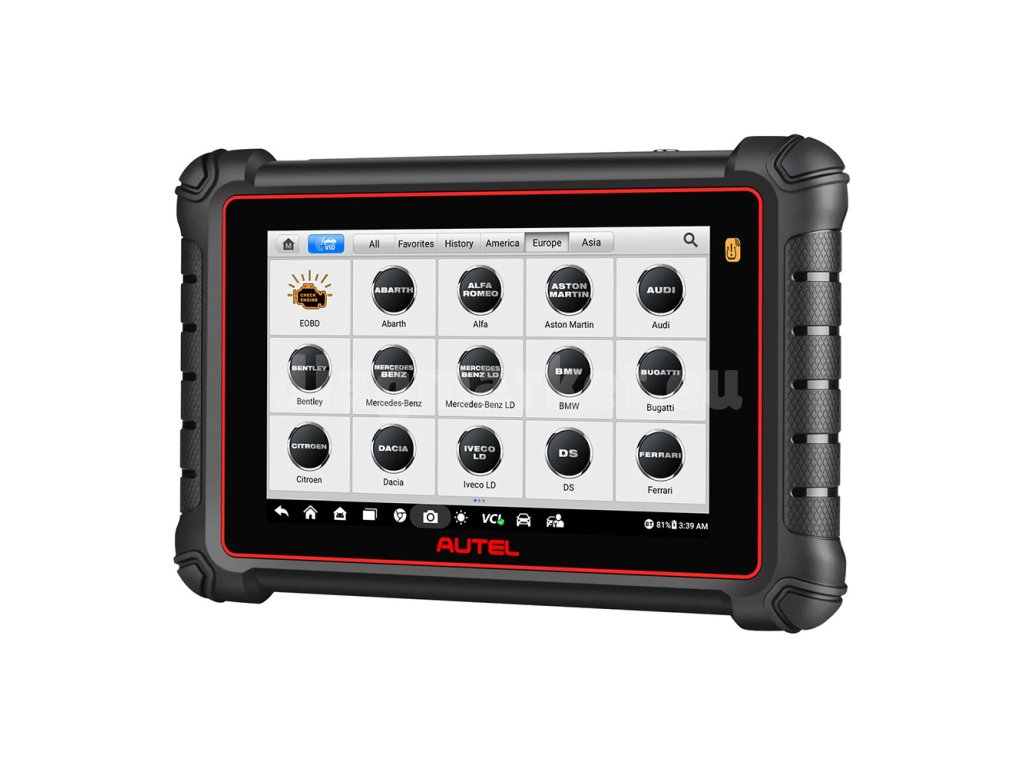

Autel MaxiPRO MP900TS 2025

Product detailed description

Autel MP900TS is the highest model of 900 series and can perform all common diagnostic and service functions, coding and TPMS coding. It offers complete diagnostics of all units on most European, Asian and American cars, combined with advanced service features. Unlike cheap universal devices, it is not limited to diagnostics within the OBD-II standard. Supports older vehicles (OBD-I). It can read the readiness code, reset service intervals, diagnose and regenerate DPF, perform basic throttle settings, reset automatic transmission adaptations, perform complete TPMS diagnostics, register battery, code the injectors, code keys and remotes and many other tasks. In addition to the engine unit, the automatic transmission, ABS, airbags, dashboard and other units in the car are also supported. Wireless VCI makes diagnostic work comfortable. The device can perform TPMS sensor coding by approx. 99 % vehicles.

Autel also supports access to FCA units protected by a security gateway module (SGW) and can also unlock SFD on VAG vehicles. Additional packages must be purchased within the device.

Diagnostic Functions

• Control unit identification
• Reading fault codes of all control units
• Clear fault codes of all control units
• Display live data
• Active tests
• Adaptation
• Coding
• Online coding

Service Functions

• Service intervals reset
• ABS bleeding
• Injector coding
• Steering wheel angle sensor reset
• Reset of automatic transmission adaptations
• Battery registration
• TPMS reset
• Electric parking brake handling
• Throttle basic settings
• Air suspension calibration
• Coolant bleeding
• Doors and windows adjustments
• Adaptive lights calibration
• adBlue reset
• NOx sensor reset
• Start/Stop reset
• GPF replace and regeneration
• DPF replace and regeneration and much more...

OBD-II Functions

• reading engine fault codes - P0, P2, P3, U0 and manufacturer specific codes P1, P3, U1 - permanent and temporary faults
• clearing engine fault codes
• extinguishing emission warning light (MIL)
• live engine data
• freeze frame engine data
• I/M Readiness test
• lambda sensor test
• EVAP system test
• battery test
• display vehicle information (VIN, CVN and more)
• OBD-II fault code database
• support for most OBD-II test modes including CAN, ISO9141, KWP2000, J1850 VPW, J1850 PWM protocols

TPMS Functions

Diagnostics is able to activate/read 99% of known TPMS sensors, read and clear TPMS errors, display manufacturer-specific valve coding procedures, and can also handle sensor learning even when replacing original sensors with Autel MX replacements.

• check – activate TPMS sensors to display ID, tire pressure, tire temperature, battery status and sensor location.
• diagnostics – displays system status, reads and clears any errors
• coding – supports:
  • copy by activation – programs sensor ID obtained from sensor
  • copy via OBD-II – programs ID obtained from TPMS unit
  • copy by input – manual ID entry
  • auto create – generates random ID
• TPMS learning – programs newly created sensor ID to TPMS unit (3 methods)
• If original part number is known, Autel MX sensors can be activated and programmed. This method allows up to 20 sensors to be coded at once.

Updates

1-year free update is included in the price of the device. After this time you can still use the device, updates are not mandatory, but you will not have information and support for newer car models. For a price list of updates: click here .

Additional Equipment (not included)

• Autel MV480 videoscope (stand alone product)
• Autel MV105S videoscope
• Autel PS100 battery tester (stand alone product)
• Autel BT506 battery tester (stand alone product)

Quick Overview of Autel Models

• diagnostic and service functions: MK808S, MK808K-BT, MK808S-TS, MK900, MK900TS, MX900, MX900TS
• diagnostic and service functions and coding: MP808S, MP808S-TS, MP900, MP900BT, MP900TS, DS900, DS900BT, DS900TS
• advanced models: MK906BT, MK906 Pro, MK906Pro-TS, MK908P, MS908S3, MS Elite II, MS906 Pro, MS906 Pro-TS, MS909, MS909EV, MS919
• TOP models: Ultra Lite, Ultra, Ultra EV
• IMMO series: IM508S, IM608 II Pro

Why choose Autel MP900TS?

• offers all common diagnostic and service functions for reasonable price
• support for cars up to 2025
• bright 8-inch display (808 series has 7") and modern design
• support for CAN-FD and DoIP communication protocols
• coding and online coding supported
• wireless VCI
• TPMS coding function

Supported Vehicles (1996 – 2025)

Asian

Acura, Daewoo, Holden, Honda, Hyundai, Infiniti, Isuzu, Kia, Lexus, Mazda, Mitsubishi, Nissan, Scion, Subaru, Suzuki, Toyota.

European

Abarth, Alfa-Romeo, Audi, BMW, Citroen, Dacia, Fiat, Ford, Jaguar, Lancia, Land Rover, Maserati, Maybach, Mercedes, Mini, Opel, Peugeot, Porsche, Renault, Saab, Seat, Skoda, Smart, Sprinter, Vauxhall, Volvo, Volkswagen.

American

Ford, GM, Chrysler.

Supported languages

The device supports different languages. After receiving the device, send us the serial number and we will authorize the device for you in desired language. Translation may not be 100% perfect, but is being improved continuously. In our experience it is well usable and makes work easier.

Supported languages: English, Arabic, Czech, Dutch, French, German, Hebrew, Indonesian English, Italian, Japanese, Korean, Persian, Polish, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Portuguese, Turkish, Thai, Vietnamese, Romanian, Hungary.

Hardware Specification

• operating system: Android 11.0
• memory: 4GB / 64 GB
• display: 8" touch screen with 1280x800 px
• operating temperature: 0 – 50°C
• storage temperature: -20 – 70°C
• operating humidity: 5 – 95% (non-condensing)
• dimensions: 237 × 149 × 36 mm

Package Content

• Autel MaxiPRO MP900TS
• wireless VCI (vehicle communication interface)
• USB cable
• practical carrying case
• quick start guide
• detailed manual
• Quick start guide available for online download
• Detailed user manual available for online download (approximately 160+ pages)
